QPA1027 - 2.8GHz - 3.5GHz 60W GaN Power Amplifier

qorvo

📥 Download Datasheet

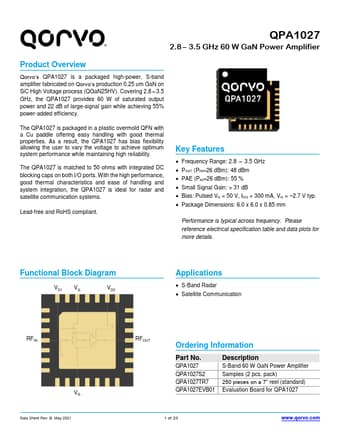

QPA1027 Datasheet Preview — Preview of QPA1027 PDF

Datasheet Details

Part number	QPA1027
Manufacturer	qorvo
File Size	798.01 KB
Description	2.8GHz - 3.5GHz 60W GaN Power Amplifier
Datasheet	QPA1027-qorvo.pdf

QPA1027 Product details

Description

S-Band 60 W GaN Power Amplifier Samples (2 pcs. 3.5 GHz 60 W GaN Power Amplifier Absolute Maximum Ratings Recommended Operating Conditions Parameter Value / Range Drain Voltage (VD) +55 V Gate Voltage Range (VG) 6 to 0 V Drain Current, average (ID1, ID2) 0.192 A, 2.3 A Gate Current (IG) Power Dissipation (PDISS), Pulse, PW = 100 uS, DC = 10%, 85°C Input Po

Features

Frequency Range: 2.8 .
3.5 GHz.
PSAT (PIN=26 dBm): 48 dBm.
PAE (PIN=26 dBm): 55 %.
Small Signal Gain: > 31 dB.
Bias: Pulsed VD = 50 V, IDQ = 300 mA, VG =.
2.7 V typ.
Package Dimensions: 6.0 x 6.0 x 0.85 mm Performance is typical across frequency. Please reference electrical specification table and data plots for more details. Functional Block Diagram VD1 VG VD2.
