QPA1013D 10W GaN Power Amplifier

TriQuint

QPA1013D Description

Applications * Test Instrumentation * Electronic Warfare (EW) * Radar * Communications QPA1013D 6 * 18GHz 10W GaN Power Ampli.
Qorvo’s QPA1013D is a broadband high power MMIC amplifier fabricated on Qorvo’s production 0.

QPA1013D Features

* Frequency Range: 6
* 18GHz
* POUT: >40dBm @ PIN = 20dBm
* PAE: >20% @ PIN = 20dBm
* Large Signal Gain: >20dB @ PIN = 20dBm
* Small Signal Gain: >25dB
* Return Loss: >6.5dB
* Bias: VD = 20V, IDQ = 1250mA, VG = -2.4V Typical
* Chip Dimensions: 5.05 x 3.55 x 0.

QPA1013D Applications

* Test Instrumentation
* Electronic Warfare (EW)
* Radar
* Communications QPA1013D 6

📥 Download Datasheet

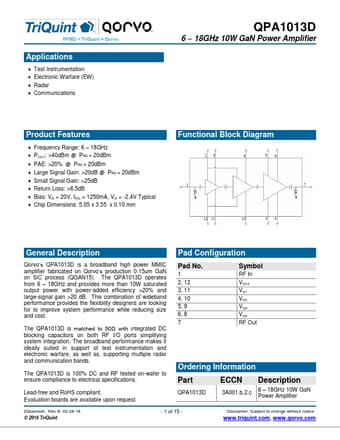

QPA1013D Datasheet Preview — Preview of QPA1013D PDF

Datasheet Details

Part number: QPA1013D
Manufacturer: TriQuint
File Size: 587.97 KB
Datasheet: QPA1013D-TriQuint.pdf
Description: 10W GaN Power Amplifier
