FPD87392AXA - TFT-LCD Timing Controller

National Semiconductor

The FPD87392AXA by National Semiconductor is a TFT-LCD Timing Controller. Below is the official datasheet preview.

Datasheet Details

Part number	FPD87392AXA
Manufacturer	National Semiconductor
File Size	160.90 KB
Description	TFT-LCD Timing Controller
Datasheet	FPD87392AXA_NationalSemiconductor.pdf

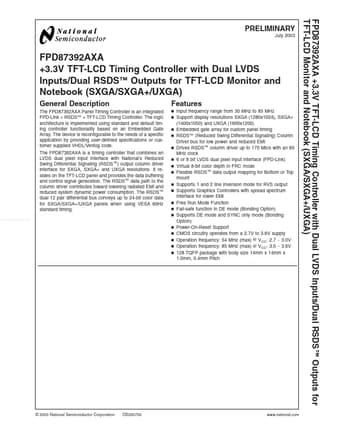

Additional preview pages of the FPD87392AXA datasheet.

The FPD87392AXA Panel Timing Controller is an integrated FPD-Link + RSDS™ + TFT-LCD Timing Controller.

n Input frequency range from 30 MHz to 85 MHz n Support display resolutions SXGA (1280x1024), SXGA+ (1400x1050) and UXGA (1600x1200) n Embedded gate array for custom panel timing n RSDS™ (Reduced Swing Differential Signaling) Column Driver bus for low power and reduced EMI n Drives RSDS™ column driver up to 170 Mb/s with an 85 MHz clock n 6 or 8 bit LVDS dual pixel input interface (FPD-Link) n Virtual 8-bit color depth in FRC mode n Flexible RSDS™ data output mapping for Bottom or Top mount n Su.
