FPD87370AXA - Low EMI Low Dynamic Power VGA/XGA/WXGA TFT-LCD Timing Controller

Description

The FPD87370AXA is a timing controller that combines an LVDS single pixel input interface with National’s Reduced Swing Differential Signaling (RSDS™) output driver interface for VGA, XGA and Wide XGA resolutions.

Features

  • n Reduced Swing Differential Signalling (RSDS™) digital bus reduces dynamic power, EMI and bus width from the timing controller n LVDS single pixel input interface system n Input clock range from 25 MHz to 85 MHz n Drives RSDS™ Column Drivers at 170 Mb/s with an 85 MHz clock (Max. ) n Virtual 8 bit color depth in FRC/Dithering mode n Single narrow 9-bit differential Source Driver bus minimizes width of Source PCB n Ability to drive VGA, XGA and Wide XGA TFT-LCD Systems n Failure detect function i.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FPD87346 Low EMI Low Dyn Pwr (SVGA) TFT-LCD Timing Cont w/Reduce Swing Diff Sig Out (Rev. A) ETCTI
FPD87392AXA +3.3V TFT-LCD Timing Controller Texas Instruments
FPD10000AF 10W PACKAGED POWER PHEMT Filtronic
FPD10000V 10W POWER PHEMT FOR WIMAX POWER AMPLIFIERS Filtronic
FPD1000AS 1W PACKAGED POWER PHEMT Filtronic

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
FPD87310 Universal Interface XGA Panel Timing Controller with RSDS (Reduced Swing Differential Signaling) and FPD-Link
FPD87346 Low Dynamic Power (SVGA) XGA/WXGA TFT-LCD Timing Controller
FPD87346BXA Low Dynamic Power (SVGA) XGA/WXGA TFTLCD Timing Controller
FPD87392AXA TFT-LCD Timing Controller
FPD87392BXB +3.3V TFT-LCD Timing Controller with Dual LVDS Inputs/Dual RSDS Outputs for TFT-LCD Monitor and Notebook (SXGA/SXGA+/UXGA)

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

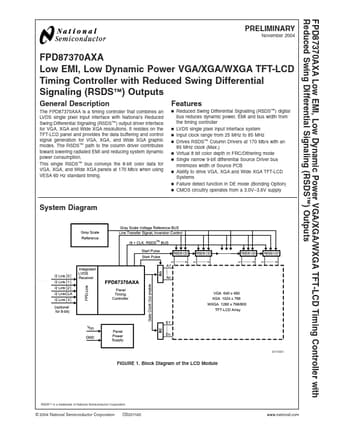

FPD87370AXA Low EMI, Low Dynamic Power VGA/XGA/WXGA TFT-LCD Timing Controller with Reduced Swing Differential Signaling (RSDS™) Outputs PRELIMINARY November 2004 FPD87370AXA Low EMI, Low Dynamic Power VGA/XGA/WXGA TFT-LCD Timing Controller with Reduced Swing Differential Signaling (RSDS™) Outputs General Description The FPD87370AXA is a timing controller that combines an LVDS single pixel input interface with National’s Reduced Swing Differential Signaling (RSDS™) output driver interface for VGA, XGA and Wide XGA resolutions. It resides on the TFT-LCD panel and provides the data buffering and control signal generation for VGA, XGA, and Wide XGA graphic modes. The RSDS™ path to the column driver contributes toward lowering radiated EMI and reducing system dynamic power consumption.
