FPD87310 - Universal Interface XGA Panel Timing Controller with RSDS (Reduced Swing Differential Signaling) and FPD-Link

National Semiconductor

The FPD87310 by National Semiconductor is a Universal Interface XGA Panel Timing Controller with RSDS (Reduced Swing Differential Signaling) and FPD-Link. Below is the official datasheet preview.

📥 Download Datasheet

FPD87310 Universal Interface XGA Panel Timing Controller with RSDS (Reduced Swing Differential Signaling) and FPD-Link by National Semiconductor - Datasheet Preview — Official preview page of the **FPD87310** Universal Interface XGA Panel Timing Controller with RSDS (Reduced Swing Differential Signaling) and FPD-Link datasheet (National Semiconductor).

Datasheet Details

Part number	FPD87310
Manufacturer	National Semiconductor
File Size	754.38 KB
Description	Universal Interface XGA Panel Timing Controller with RSDS (Reduced Swing Differential Signaling) and FPD-Link
Datasheet	FPD87310_NationalSemiconductor.pdf

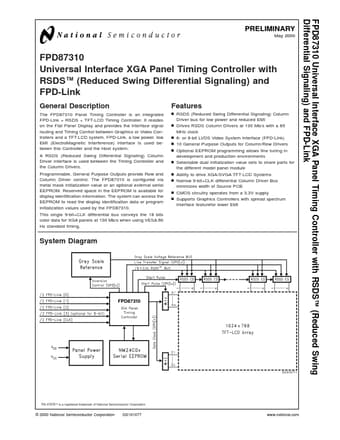

Additional preview pages of the FPD87310 datasheet.

FPD87310 Product details

Description

The FPD87310 Panel Timing Controller is an integrated FPD-Link + RSDS + TFT-LCD Timing Controller.

Features

n RSDS (Reduced Swing Differential Signaling) Column Driver bus for low power and reduced EMI n Drives RSDS Column Drivers at 130 Mb/s with a 65 MHz clock n 6- or 8-bit LVDS Video System Interface (FPD-Link) n 10 General Purpose Outputs for Column/Row Drivers n Optional EEPROM programming allows fine tuning in development and production environments n Selectable dual initialization value sets to share parts for the different model panel module n Ability to drive XGA/SVGA TFT-LCD Systems n Narrow.
