FPD87346 - Low Dynamic Power (SVGA) XGA/WXGA TFT-LCD Timing Controller

National Semiconductor

The FPD87346 by National Semiconductor is a Low Dynamic Power (SVGA) XGA/WXGA TFT-LCD Timing Controller. Below is the official datasheet preview.

📥 Download Datasheet

FPD87346 Low Dynamic Power (SVGA) XGA/WXGA TFT-LCD Timing Controller by National Semiconductor - Datasheet Preview — Official preview page of the **FPD87346** Low Dynamic Power (SVGA) XGA/WXGA TFT-LCD Timing Controller datasheet (National Semiconductor).

Datasheet Details

Part number	FPD87346
Manufacturer	National Semiconductor
File Size	105.47 KB
Description	Low Dynamic Power (SVGA) XGA/WXGA TFT-LCD Timing Controller
Datasheet	FPD87346_NationalSemiconductor.pdf

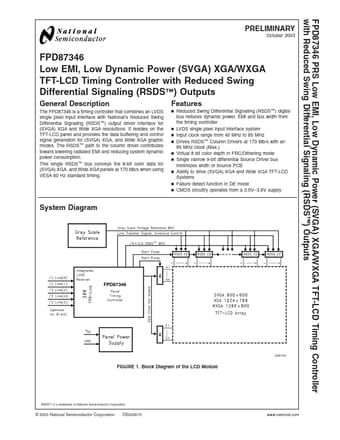

Additional preview pages of the FPD87346 datasheet.

FPD87346 Product details

Description

The FPD87346 is a timing controller that combines an LVDS single pixel input interface with National’s Reduced Swing Differential Signaling (RSDS™) output driver interface for (SVGA) XGA and Wide XGA resolutions.

Features

n Reduced Swing Differential Signalling (RSDS™) digital bus reduces dynamic power, EMI and bus width from the timing controller n LVDS single pixel input interface system n Input clock range from 40 MHz to 85 MHz n Drives RSDS™ Column Drivers at 170 Mb/s with an 85 MHz clock (Max. ) n Virtual 8 bit color depth in FRC/Dithering mode n Single narrow 9-bit differential Source Driver bus minimizes width of Source PCB n Ability to drive (SVGA) XGA and Wide XGA TFT-LCD Systems n Failure detect function.
