MC-4516DA726 - 16 M-WORD BY 72-BIT SYNCHRONOUS DYNAMIC RAM MODULE

NEC

The MC-4516DA726 by NEC is a 16 M-WORD BY 72-BIT SYNCHRONOUS DYNAMIC RAM MODULE. Below is the official datasheet preview.

Datasheet Details

Part number	MC-4516DA726
Manufacturer	NEC
File Size	232.40 KB
Description	16 M-WORD BY 72-BIT SYNCHRONOUS DYNAMIC RAM MODULE
Datasheet	MC-4516DA726_NEC.pdf

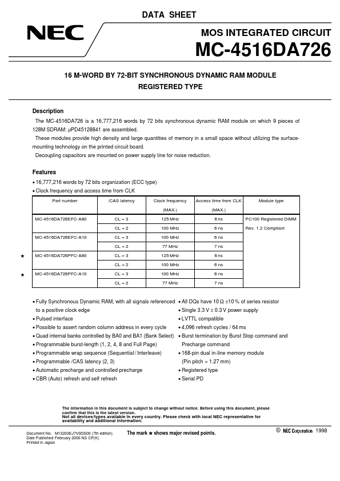

Additional preview pages of the MC-4516DA726 datasheet.

The MC-4516DA726 is a 16,777,216 words by 72 bits synchronous dynamic RAM module on which 9 pieces of 128M SDRAM: µPD45128841 are assembled.

16,777,216 words by 72 bits organization (ECC type).
Clock frequency and access time from CLK Part number /CAS latency Clock frequency (MAX. ) MC-4516DA726EFC-A80 CL = 3 CL = 2 MC-4516DA726EFC-A10 CL = 3 CL = 2 125 MHz 100 MHz 100 MHz 77 MHz 125 MHz 100 MHz 100 MHz 77 MHz Access time from CLK (MAX. ) 6 ns 6 ns 6 ns 7 ns 6 ns 6 ns 6 ns 7 ns PC100 Registered DIMM Rev. 1.2 Compliant Module type 5 MC-4516DA726PFC-A80 CL = 3 CL = 2 5 MC-4516DA726PFC-A10 CL = 3 CL = 2.
