MC-4516CB64ES - 16 M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE

NEC

The MC-4516CB64ES by NEC is a 16 M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE. Below is the official datasheet preview.

📥 Download Datasheet

MC-4516CB64ES 16 M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE by NEC - Datasheet Preview — Official preview page of the **MC-4516CB64ES** 16 M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE datasheet (NEC).

Datasheet Details

Part number	MC-4516CB64ES
Manufacturer	NEC
File Size	129.42 KB
Description	16 M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE
Datasheet	MC-4516CB64ES_NEC.pdf

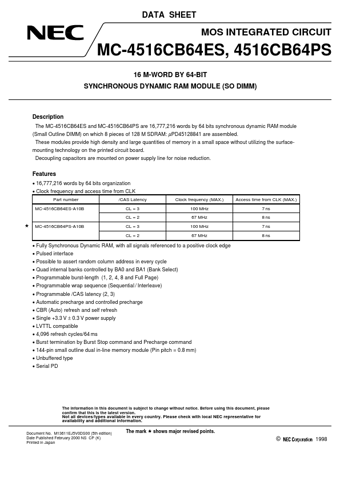

Additional preview pages of the MC-4516CB64ES datasheet.

MC-4516CB64ES Product details

Description

The MC-4516CB64ES and MC-4516CB64PS are 16,777,216 words by 64 bits synchronous dynamic RAM module (Small Outline DIMM) on which 8 pieces of 128 M SDRAM: µPD45128841 are assembled.

Features

16,777,216 words by 64 bits organization.
Clock frequency and access time from CLK Part number MC-4516CB64ES-A10B /CAS Latency CL = 3 CL = 2 Clock frequency (MAX. ) 100 MHz 67 MHz 100 MHz 67 MHz Access time from CLK (MAX. ) 7 ns 8 ns 7 ns 8 ns 5 MC-4516CB64PS-A10B CL = 3 CL = 2.
Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge.
Pulsed interface.
Possible to assert random column address in every cycle.
Qua.
