MC-4532CD647XFA - 32M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE

Elpida Memory

The MC-4532CD647XFA by Elpida Memory is a 32M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE. Below is the official datasheet preview.

Datasheet Details

Part number	MC-4532CD647XFA
Manufacturer	Elpida Memory
File Size	171.54 KB
Description	32M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE
Datasheet	MC-4532CD647XFA_ElpidaMemory.pdf

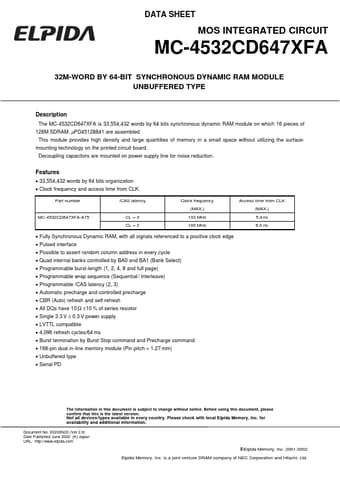

Additional preview pages of the MC-4532CD647XFA datasheet.

The MC-4532CD647XFA is 33,554,432 words by 64 bits synchronous dynamic RAM module on which 16 pieces of 128M SDRAM: µPD45128841 are assembled.

33,554,432 words by 64 bits organization.
Clock frequency and access time from CLK. Part number /CAS latency Clock frequency (MAX. ) MC-4532CD647XFA-A75 CL = 3 CL = 2 133 MHz 100 MHz Access time from CLK (MAX. ) 5.4 ns 6.0 ns.
Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge.
Pulsed interface.
Possible to assert random column address in every cycle.
Quad internal banks controlled by BA0 and BA1 (Bank Select).
