MC-4532CD646 - 32M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE

NEC

The MC-4532CD646 by NEC is a 32M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE. Below is the official datasheet preview.

Datasheet Details

Part number	MC-4532CD646
Manufacturer	NEC
File Size	148.41 KB
Description	32M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE
Datasheet	MC-4532CD646_NEC.pdf

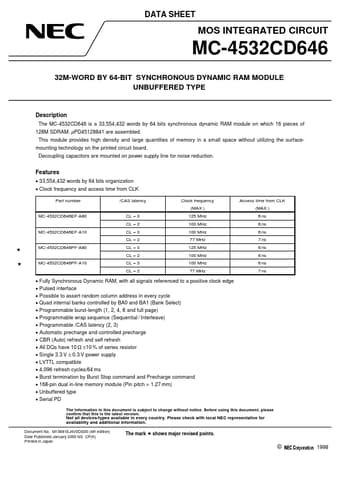

Additional preview pages of the MC-4532CD646 datasheet.

The MC-4532CD646 is a 33,554,432 words by 64 bits synchronous dynamic RAM module on which 16 pieces of 128M SDRAM: µPD45128841 are assembled.

33,554,432 words by 64 bits organization.
Clock frequency and access time from CLK Part number MC-4532CD646EF-A80 MC-4532CD646EF-A10 MC-4532CD646PF-A80 MC-4532CD646PF-A10 /CAS latency CL = 3 CL = 2 CL = 3 CL = 2 CL = 3 CL = 2 CL = 3 CL = 2 Clock frequency (MAX. ) 125 MHz 100 MHz 100 MHz 77 MHz 125 MHz 100 MHz 100 MHz 77 MHz Access time from CLK (MAX. ) 6 ns 6 ns 6 ns 7 ns 6 ns 6 ns 6 ns 7 ns 5 5.
Fully Synchronous Dynamic RAM, with all signals referenced to a positive.
