MC-4516CB647XFA - 16M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE

Elpida Memory

The MC-4516CB647XFA by Elpida Memory is a 16M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE. Below is the official datasheet preview.

Datasheet Details

Part number	MC-4516CB647XFA
Manufacturer	Elpida Memory
File Size	168.92 KB
Description	16M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE
Datasheet	MC-4516CB647XFA_ElpidaMemory.pdf

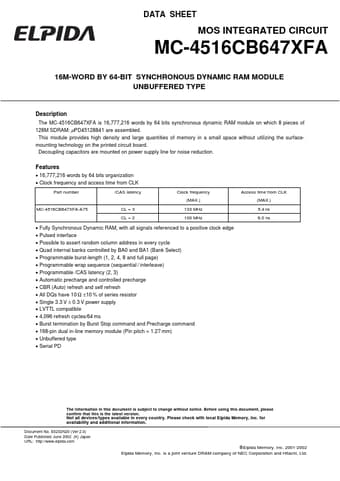

Additional preview pages of the MC-4516CB647XFA datasheet.

The MC-4516CB647XFA is 16,777,216 words by 64 bits synchronous dynamic RAM module on which 8 pieces of 128M SDRAM: µPD45128841 are assembled.

16,777,216 words by 64 bits organization.
Clock frequency and access time from CLK Part number /CAS latency Clock frequency (MAX. ) MC-4516CB647XFA-A75 CL = 3 CL = 2 133 MHz 100 MHz Access time from CLK (MAX. ) 5.4 ns 6.0 ns.
Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge.
Pulsed interface.
Possible to assert random column address in every cycle.
Quad internal banks controlled by BA0 and BA1 (Bank Select).
