MC-4516CA726 - 16M-WORD BY 72-BIT SYNCHRONOUS DYNAMIC RAM MODULE

NEC

The MC-4516CA726 by NEC is a 16M-WORD BY 72-BIT SYNCHRONOUS DYNAMIC RAM MODULE. Below is the official datasheet preview.

Datasheet Details

Part number	MC-4516CA726
Manufacturer	NEC
File Size	149.73 KB
Description	16M-WORD BY 72-BIT SYNCHRONOUS DYNAMIC RAM MODULE
Datasheet	MC-4516CA726_NEC.pdf

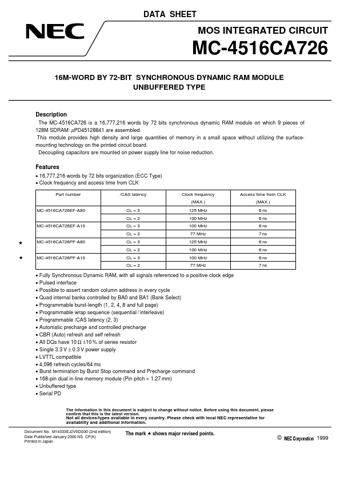

Additional preview pages of the MC-4516CA726 datasheet.

The MC-4516CA726 is a 16,777,216 words by 72 bits synchronous dynamic RAM module on which 9 pieces of 128M SDRAM: µPD45128841 are assembled.

16,777,216 words by 72 bits organization (ECC Type).
Clock frequency and access time from CLK Part number /CAS latency Clock frequency (MAX. ) MC-4516CA726EF-A80 CL = 3 CL = 2 MC-4516CA726EF-A10 CL = 3 CL = 2 125 MHz 100 MHz 100 MHz 77 MHz 125 MHz 100 MHz 100 MHz 77 MHz Access time from CLK (MAX. ) 6 ns 6 ns 6 ns 7 ns 6 ns 6 ns 6 ns 7 ns 5 5 MC-4516CA726PF-A80 CL = 3 CL = 2 MC-4516CA726PF-A10 CL = 3 CL = 2.
Fully Synchronous Dynamic RAM, with all signals reference.
