MC-4516CB647 - 16M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE

NEC

The MC-4516CB647 by NEC is a 16M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE. Below is the official datasheet preview.

📥 Download Datasheet

MC-4516CB647 16M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE by NEC - Datasheet Preview — Official preview page of the **MC-4516CB647** 16M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE datasheet (NEC).

Datasheet Details

Part number	MC-4516CB647
Manufacturer	NEC
File Size	210.28 KB
Description	16M-WORD BY 64-BIT SYNCHRONOUS DYNAMIC RAM MODULE
Datasheet	MC-4516CB647_NEC.pdf

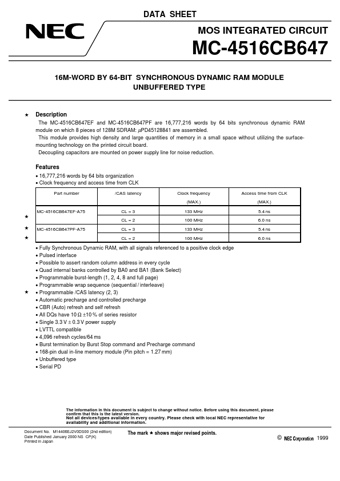

Additional preview pages of the MC-4516CB647 datasheet.

MC-4516CB647 Product details

Description

The MC-4516CB647EF and MC-4516CB647PF are 16,777,216 words by 64 bits synchronous dynamic RAM module on which 8 pieces of 128M SDRAM: µPD45128841 are assembled.

Features

16,777,216 words by 64 bits organization.
Clock frequency and access time from CLK Part number /CAS latency Clock frequency (MAX. ) MC-4516CB647EF-A75 CL = 3 CL = 2 MC-4516CB647PF-A75 CL = 3 CL = 2 133 MHz 100 MHz 133 MHz 100 MHz Access time from CLK (MAX. ) 5.4 ns 6.0 ns 5.4 ns 6.0 ns 5 5 5 5.
Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge.
Pulsed interface.
Possible to assert random column address in every cycl.
