MT29F8G08ABCBB, MT29F8G08ABABA - NAND Flash Memory

Micron

The MT29F8G08ABCBB by Micron is a NAND Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

MT29F8G08ABCBB NAND Flash Memory by Micron - Datasheet Preview — Official preview page of the **MT29F8G08ABCBB** NAND Flash Memory datasheet (Micron).

Datasheet Details

Part number	MT29F8G08ABCBB, MT29F8G08ABABA
Manufacturer	Micron
File Size	2.87 MB
Description	NAND Flash Memory
Datasheet	MT29F8G08ABABA_Micron.pdf
Note	This datasheet PDF includes multiple part numbers: MT29F8G08ABCBB, MT29F8G08ABABA. Please refer to the document for exact specifications by model.
Additional preview pages of the MT29F8G08ABCBB datasheet.

MT29F8G08ABCBB Product details

Description

9 Signal Assignments 10 Package Dimensions 12 Architecture 14 Device and Array Organization 15 Bus Operation Asynchronous Interface 17 Asynchronous Enable/Standby 17 Asynchronous Bus Idle 17 Asynchronous Commands 18 Asynchronous Addresses 19 Asynchronous Data Input 20 Asynchronous Data Output 21 Write Protect 22 Ready/Busy# 22 Bus Operation Synchronous Interface 27 Synchronous Enable/Standby 28 Synchronous Bus Idle/Driving 28 Synchronous Commands 29 Synchron

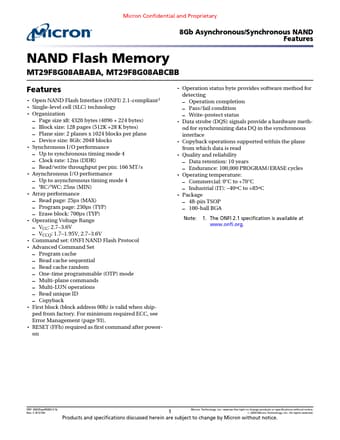

Features

NAND Flash Memory MT29F8G08ABABA, MT29F8G08ABCBB Features.
Open NAND Flash Interface (ONFI) 2.1-compliant1.
Single-level cell (SLC) technology.
Organization.
Page size x8: 4320 bytes (4096 + 224 bytes).
Block size: 128 pages (512K +28 K bytes).
Plane size: 2 planes x 1024 blocks per plane.
Device size: 8Gb: 2048 blocks.
Synchronous I/O performance.
Up to synchronous timing mode 4.
Clock rate: 12ns (DDR).
