MT29F1G08ABADAH4, MT29F1G08ABADAWP - NAND Flash Memory

Micron Technology

📥 Download Datasheet

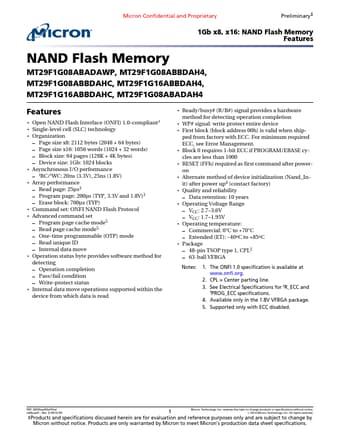

MT29F1G08ABADAH4 Datasheet Preview — This datasheet PDF includes multiple part numbers: MT29F1G08ABADAH4, MT29F1G08ABADAWP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MT29F1G08ABADAH4, MT29F1G08ABADAWP
Manufacturer	Micron Technology
File Size	1.03 MB
Description	NAND Flash Memory
Datasheet	MT29F1G08ABADAWP-MicronTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MT29F1G08ABADAH4, MT29F1G08ABADAWP. Please refer to the document for exact specifications by model.

MT29F1G08ABADAH4 Product details

Description

8 Signal Descriptions and Assignments 8 Signal Assignments 8 Package Dimensions 12 Architecture 15 Device and Array Organization 16 Asynchronous Interface Bus Operation 18 Asynchronous Enable/Standby 18 Asynchronous Commands 18 Asynchronous Addresses 20 Asynchronous Data Input 21 Asynchronous Data Output 22 Write Protect# 23 Ready/Busy# 23 Device Initialization 28 Command Definitions 29 Reset Operations 31 RESET (FFh) 31 Identification Operations 32 READ ID (90h) 32 READ ID P

Features

NAND Flash Memory MT29F1G08ABADAWP, MT29F1G08ABBDAH4, MT29F1G08ABBDAHC, MT29F1G16ABBDAH4, MT29F1G16ABBDAHC, MT29F1G08ABADAH4 Features.
Open NAND Flash Interface (ONFI) 1.0-compliant1.
Single-level cell (SLC) technology.
Organization.
Page size x8: 2112 bytes (2048 + 64 bytes).
Page size x16: 1056 words (1024 + 32 words).
Block size: 64 pages (128K + 4K bytes).
Device size: 1Gb: 1024 blocks.
Asynchronous I/O performance.
