MT29F1G01AAADD - 1Gb x1: SPI NAND Flash Memory

Micron Technology

📥 Download Datasheet

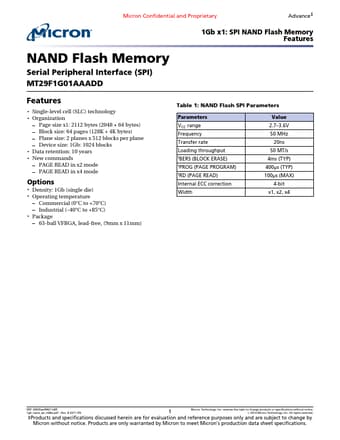

MT29F1G01AAADD Datasheet Preview — Preview of MT29F1G01AAADD PDF

Datasheet Details

Part number	MT29F1G01AAADD
Manufacturer	Micron Technology
File Size	557.30 KB
Description	1Gb x1: SPI NAND Flash Memory
Datasheet	MT29F1G01AAADD-MicronTechnology.pdf

MT29F1G01AAADD Product details

Description

6 Architecture 7 Ball Assignments and Descriptions 8 Memory Mapping 10 Array Organization 10 Bus Operation 11 SPI Modes 11 CS# 11 SCK 11 HOLD#/SO3 11 SI/SO0 12 WP#/SO2 12 SO/SO1 12 SPI NAND Command Definitions 13 WRITE Operations 14 WRITE ENABLE (06h) 14 WRITE DISABLE (04h) 14

Features

NAND Flash Memory Serial Peripheral Interface (SPI) MT29F1G01AAADD Features.
Single-level cell (SLC) technology.
Organization.
Page size x1: 2112 bytes (2048 + 64 bytes).
Block size: 64 pages (128K + 4K bytes).
Plane size: 2 planes x 512 blocks per plane.
Device size: 1Gb: 1024 blocks.
Data retention: 10 years.
New commands.
PAGE READ in x2 mode.
PAGE READ in x4 mode Options.
Density: 1Gb (single.
