MT29F1G08AACWP - NAND Flash Memory

Micron Technology

📥 Download Datasheet

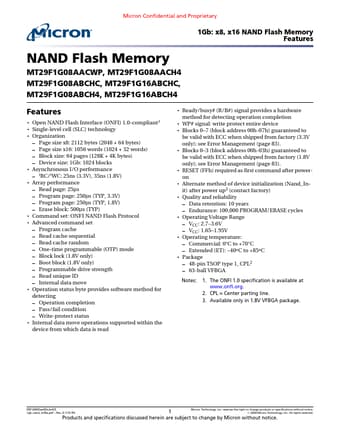

MT29F1G08AACWP Datasheet Preview — Preview of MT29F1G08AACWP PDF

Datasheet Details

Part number	MT29F1G08AACWP
Manufacturer	Micron Technology
File Size	1.35 MB
Description	NAND Flash Memory
Datasheet	MT29F1G08AACWP_MicronTechnology.pdf

MT29F1G08AACWP Product details

Description

8 Signal Descriptions and Assignments 8 Package Dimensions 12 Architecture 15 Device and Array Organization 16 Asynchronous Interface Bus Operation 18 Asynchronous Enable/Standby 18 Asynchronous Commands 18 Asynchronous Addresses 20 Asynchronous Data Input 21 Asynchronous Data Output 22 Write Protect 23 Ready/Busy# 23 Device Initialization 28 Command Definitions 29 Reset Operations 31 RESET (FFh) 31 Identification Operations 32 READ ID (90h) 32 READ ID Parameter Tables 33 REA

Features

NAND Flash Memory MT29F1G08AACWP, MT29F1G08AACH4 MT29F1G08ABCHC, MT29F1G16ABCHC, MT29F1G08ABCH4, MT29F1G16ABCH4 Features.
Open NAND Flash Interface (ONFI) 1.0-compliant1.
Single-level cell (SLC) technology.
Organization.
Page size x8: 2112 bytes (2048 + 64 bytes).
Page size x16: 1056 words (1024 + 32 words).
Block size: 64 pages (128K + 4K bytes).
Device size: 1Gb: 1024 blocks.
Asynchronous I/O performance.
tRC/tWC.
