MT29F8G08ABACA - NAND Flash Memory

Micron

The MT29F8G08ABACA by Micron is a NAND Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

MT29F8G08ABACA NAND Flash Memory by Micron - Datasheet Preview — Official preview page of the **MT29F8G08ABACA** NAND Flash Memory datasheet (Micron).

Datasheet Details

Part number	MT29F8G08ABACA
Manufacturer	Micron
File Size	1.30 MB
Description	NAND Flash Memory
Datasheet	MT29F8G08ABACA-Micron.pdf

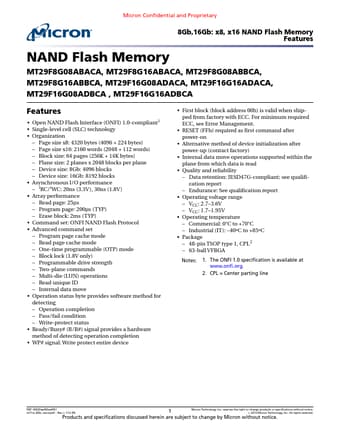

Additional preview pages of the MT29F8G08ABACA datasheet.

MT29F8G08ABACA Product details

Description

8 Signal Descriptions 8 Signal Assignments 9 Package Dimensions 12 Architecture 14 Device and Array Organization 15 Bare Die Array Organization 17 Asynchronous Interface Bus Operation 19 Asynchronous Enable/Standby 19 Asynchronous Commands 19 Asynchronous Addresses 21 Asynchronous Data Input 22 Asynchronous Data Output 23 Write Protect# 24 Ready/Busy# 24 Device Initialization 29 Power Cycle Requirements 30 Command Definitions 31 Reset Operations 34 RESET (FFh) 34 Identificati

Features

NAND Flash Memory MT29F8G08ABACA, MT29F8G16ABACA, MT29F8G08ABBCA, MT29F8G16ABBCA, MT29F16G08ADACA, MT29F16G16ADACA, MT29F16G08ADBCA , MT29F16G16ADBCA Features.
Open NAND Flash Interface (ONFI) 1.0-compliant1.
Single-level cell (SLC) technology.
Organization.
Page size x8: 4320 bytes (4096 + 224 bytes).
Page size x16: 2160 words (2048 + 112 words).
Block size: 64 pages (256K + 14K bytes).
Plane size: 2 planes x 2048 blocks per plane.
