4N60C - 600V N-Channel MOSFET

Datasheet Summary

Description

This Power MOSFET is produced using Maple semi‘s advanced planar stripe DMOS technology.

This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.

Features

  • - 4.0A, 600V, RDS(on)typ. = 2.2Ω@VGS = 10 V - Low gate charge ( typical 14nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability D GDS TO-220 GDS TO-220F G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter SLP4N60C SLF4N60C VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Drain-Source Voltage Drain Current Drain Current - Continuous (TC = 25℃) - Continuous (TC = 100℃) - Pulsed (Note 1) Gat.

📥 Download Datasheet

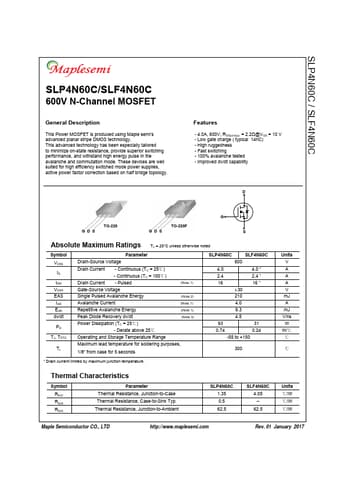

Datasheet preview – 4N60C
