PTVA120251EA - 25W High Power RF LDMOS FET

Name: PTVA120251EA
SKU: PTVA120251EA-1532070

MACOM

Datasheet Details

The PTVA120251EA LDMOS FET is designed for use in power amplifier applications in the 500 MHz to 1400 MHz frequency band.

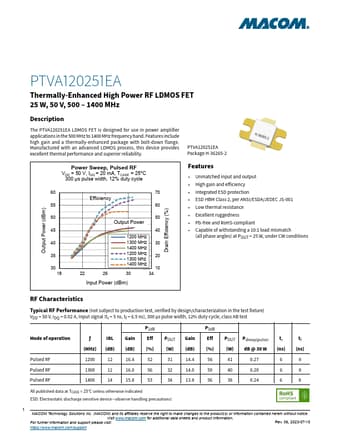

include high gain and a thermally-enhanced package with bolt-down flange. Manufactured with an advanced LDMOS process, this device provides excellent thermal performance and superior reliability. Power Sweep, Pulsed RF VDD = 50 V, IDQ = 20 mA, TCASE = 25°C 300 µs pulse width, 12% duty cycle 60 70 Efficiency 55 60 Output Power (dBm) Drain Efficiency (%) 50 45 40 35 30 18 50 Output Power 40 1200 MHz 1300 MHz 30 1400 MHz 1200 MHz 1300 Mhz 20 1400 MHz a120251ea-v2-gr1a``` 10 22 26.
