PXAC192908FV - Thermally-Enhanced High Power RF LDMOS FET

Name: PXAC192908FV
SKU: PXAC192908FV-964328

Infineon

📥 Download Datasheet

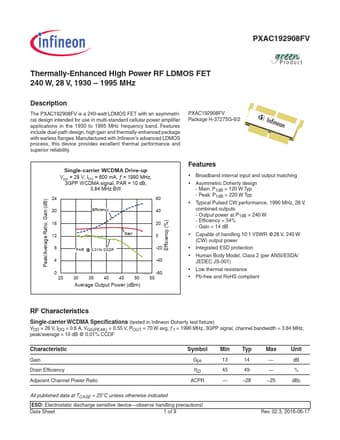

PXAC192908FV Datasheet Preview — Preview of PXAC192908FV PDF

Datasheet Details

Part number	PXAC192908FV
Manufacturer	Infineon
File Size	331.60 KB
Description	Thermally-Enhanced High Power RF LDMOS FET
Datasheet	PXAC192908FV-Infineon.pdf

PXAC192908FV Product details

Description

The PXAC192908FV is a 240-watt LDMOS FET with an asymmetrical design intended for use in multi-standard cellular power amplifier applications in the 1930 to 1995 MHz frequency band.

Features

include dual-path design, high gain and thermally-enhanced package with earless flanges. Manufactured with Infineon's advanced LDMOS process, this device provides excellent thermal performance and superior reliability. PXAC192908FV Package H-37275G-6/2 Peak/Average Ratio, Gain (dB) Efficiency (%) Single-carrier WCDMA Drive-up VDD = 28 V, IDQ = 600 mA, ƒ = 1990 MHz, 3GPP WCDMA signal, PAR = 10 dB, 3.84 MHz BW 24 60 20 Efficiency 40 16 20 12 Gain 0 8 PAR @ 0.01% CCDF 4 -20 -40 0 25 c1.
