IXTA3N50D2 N-Channel MOSFET

Depletion Mode MOSFET N-Channel IXTA3N50D2 IXTP3N50D2 D VDSX = ID(on) >  RDS(on) 500V 3A 1.5 G S Symbol VDSX VGSX VGSM PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 150C Continuous Transient TC = 25C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s Mounting Torque (TO-220) TO-263 TO-220 Maximum Ratings 500 V 20 V 30 V 125 W - 55 +150 C 150 C - 55 +150 C 300 °C 260 °C 1.13 / 10 Nm/lb.in 2.5 g 3.0 g Symbol Test .

IXTA3N50D2 Features

* Normally ON Mode

*  International Standard Packages

* Molding Epoxies Meet UL 94 V-0 Flammability Classification Advantages

* Easy to Mount

* Space Savings

* High Power Density Applications

* Audio Amplifiers

* Start-up Circuits

IXTP3N50D2_IXYSCorporation.pdf

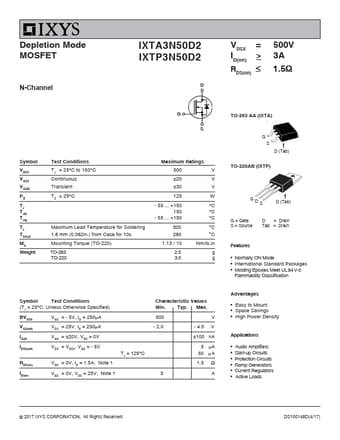

IXTA3N50D2 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXTA3N50D2, IXTP3N50D2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXTA3N50D2, IXTP3N50D2

Manufacturer:

IXYS Corporation

File Size:

156.74 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXTA3N50D2, IXTP3N50D2.
Please refer to the document for exact specifications by model.
