IXGH60N60 - Ultra-Low VCE(sat) IGBT

Download the IXGH60N60 datasheet PDF. This datasheet also covers the IXGK60N60 variant, as both devices belong to the same ultra-low vce(sat) igbt family and are provided as variant models within a single manufacturer datasheet.

Features

  • International standard package JEDEC TO-247 AD, TO-264, TO-268.
  • New generation.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IXGK60N60_IXYSCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IXGH60N60C3D1 High Speed PT IGBT IXYS
IXGH60N30C3 High Speed IGBT IXYS
IXGH64N60B3 Medium speed low Vsat PT IGBT IXYS
IXGH6N170 High Voltage IGBT IXYS
IXGH100N30C3 High Speed PT IGBT IXYS

Other Datasheets by IXYS (Littelfuse)

Part Number Description
IXGH60N60B2 IGBT
IXGH60N60C2 High Speed IGBT
IXGH60N60C3 High Speed PT IGBT
IXGH60N50 HIGH CURRENT MOS IGBT
IXGH6N170A High Voltage IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

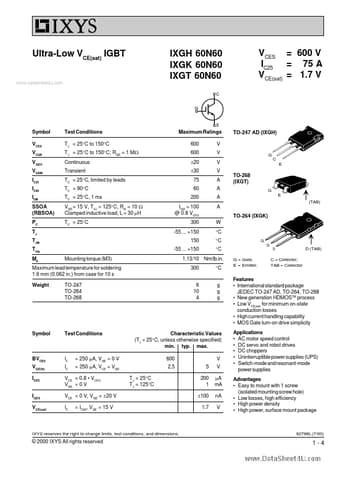

Ultra-Low VCE(sat) IGBT www.datasheet4u.com IXGH 60N60 IXGK 60N60 IXGT 60N60 VCES = 600 V IC25 = 75 A VCE(sat) = 1.7 V Symbol VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSOA) PC TJ TJM Tstg Md Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C, limited by leads TC = 90°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 10 W Clamped inductive load, L = 30 mH TC = 25°C Maximum Ratings 600 600 ±20 ±30 75 60 200 ICM = 100 @ 0.8 VCES 300 -55 ... +150 150 -55 ... +150 V V V V A A A A TO-247 AD (IXGH) G C E TO-268 (IXGT) G E (TAB) TO-264 (IXGK) W °C °C °C °C g g g G = Gate, E = Emitter, G D S D (TAB) Mounting torque (M3) 1.13/10 Nm/lb.in. 300 6 10 4 Maximum lead temperature for soldering 1.6 mm (0.062 in.
