ATF-26836 2-16 GHz General Purpose Gallium Arsenide FET

ATF-26836 Description

2 * 16 GHz General Purpose Gallium Arsenide FET Technical Data ATF-26836 .
The ATF-26836 is a high performance gallium arsenide Schottkybarrier-gate field effect transistor housed in a cost effective microstrip package.

ATF-26836 Features

* High Output Power: 18.0␣ dBm Typical P 1dB at 12␣ GHz
* High Gain: 9.0 dB Typical GSS at 12␣ GHz
* Cost Effective Ceramic Microstrip Package

ATF-26836 Applications

* and general purpose amplifier applications in the 2-16␣ GHz frequency range. 36 micro-X Package This GaAs FET device has a nominal 0.3 micron gate length with a total gate periphery of 250␣ microns. Proven gold based metallization systems and nitride passivation assure a rugged, reliable device.

📥 Download Datasheet

Preview of ATF-26836 PDF

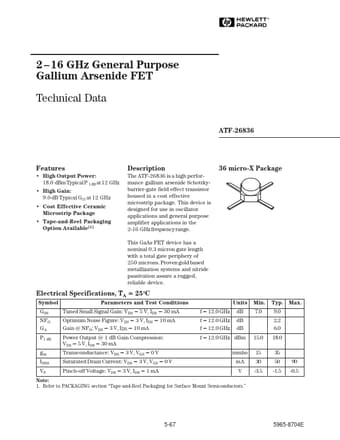

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATF-26836
Manufacturer
HP
File Size
41.79 KB
Datasheet
ATF-26836-HP.pdf
Description
2-16 GHz General Purpose Gallium Arsenide FET
