ELM53981A-S - Dual P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

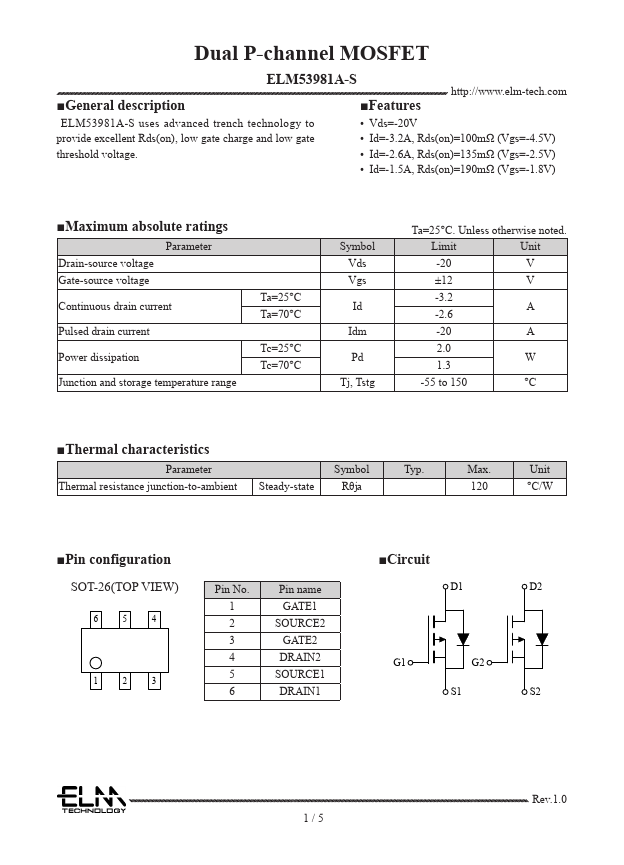

ELM53981A-S Dual P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM53981A-S

Datasheet Details

Part number	ELM53981A-S
Manufacturer	ELM
File Size	814.52 KB
Description	Dual P-channel MOSFET
Datasheet	ELM53981A-S Datasheet

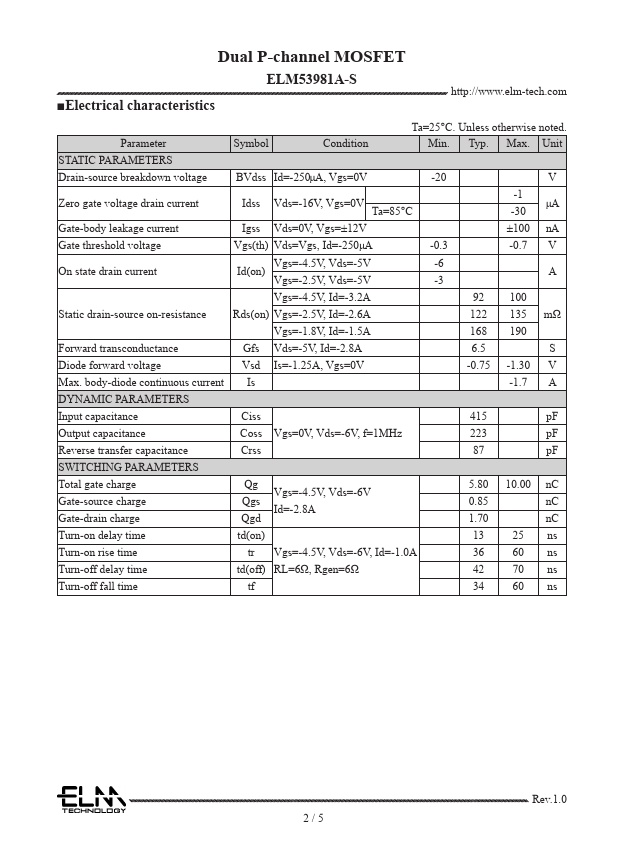

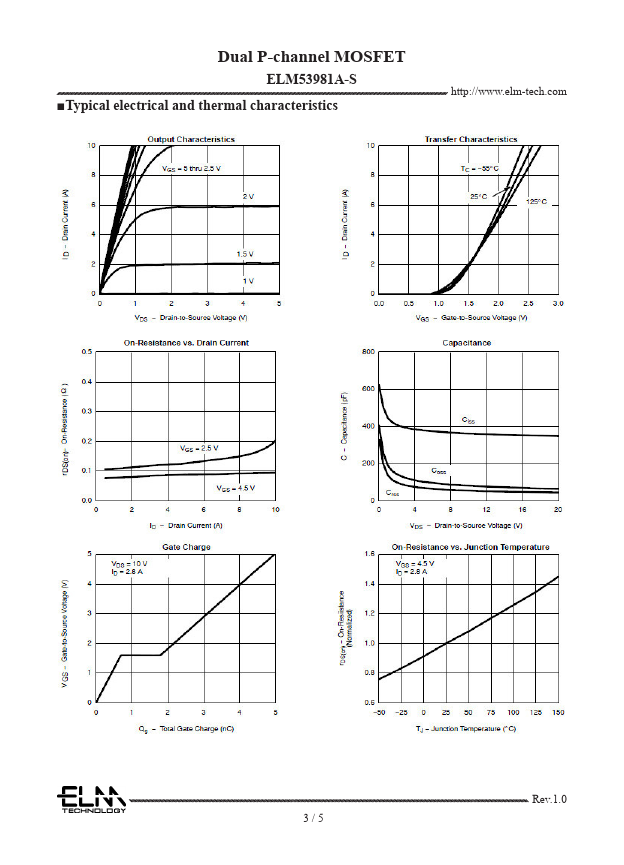

Additional preview pages of the ELM53981A-S datasheet.

Product details

Features

ELM53981A-S uses advanced trench technology to.
Vds=-20V provide excellent Rds(on), low gate charge and low gate.
Id=-3.2A, Rds(on)=100mΩ (Vgs=-4.5V) threshold voltage.
Id=-2.6A, Rds(on)=135mΩ (Vgs=-2.5V).
Id=-1.5A, Rds(on)=190mΩ (Vgs=-1.8V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current Pulsed drain current Power dissipation Junction and storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=.
