ELM53993A-S - Dual P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

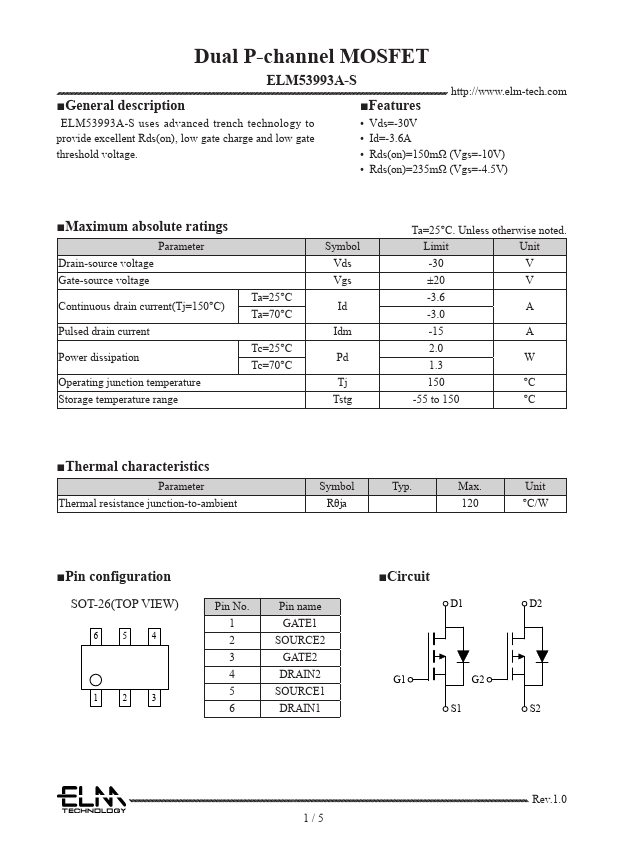

ELM53993A-S Dual P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM53993A-S

Datasheet Details

Part number	ELM53993A-S
Manufacturer	ELM
File Size	861.08 KB
Description	Dual P-channel MOSFET
Datasheet	ELM53993A-S Datasheet

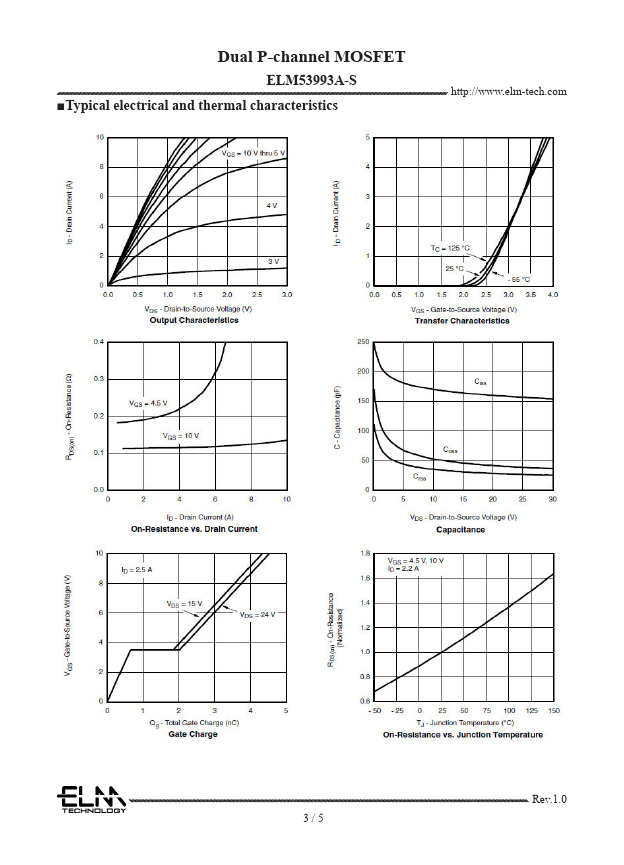

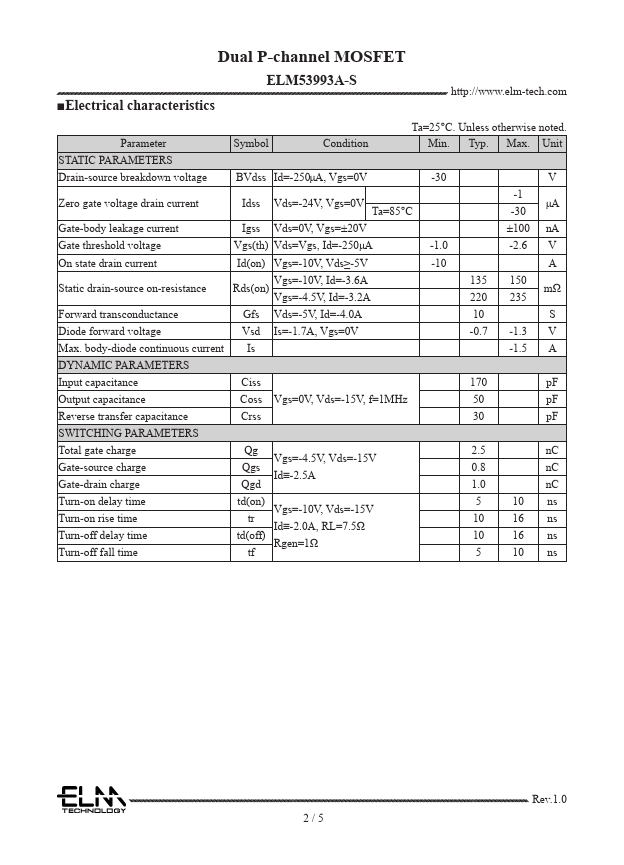

Additional preview pages of the ELM53993A-S datasheet.

Product details

Features

ELM53993A-S uses advanced trench technology to.
Vds=-30V provide excellent Rds(on), low gate charge and low gate.
Id=-3.6A threshold voltage.
Rds(on)=150mΩ (Vgs=-10V).
Rds(on)=235mΩ (Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol Vds Vgs.
