ELM51016CA-S - Complementary MOSFET

Product Overview

ELM

📥 Download Datasheet

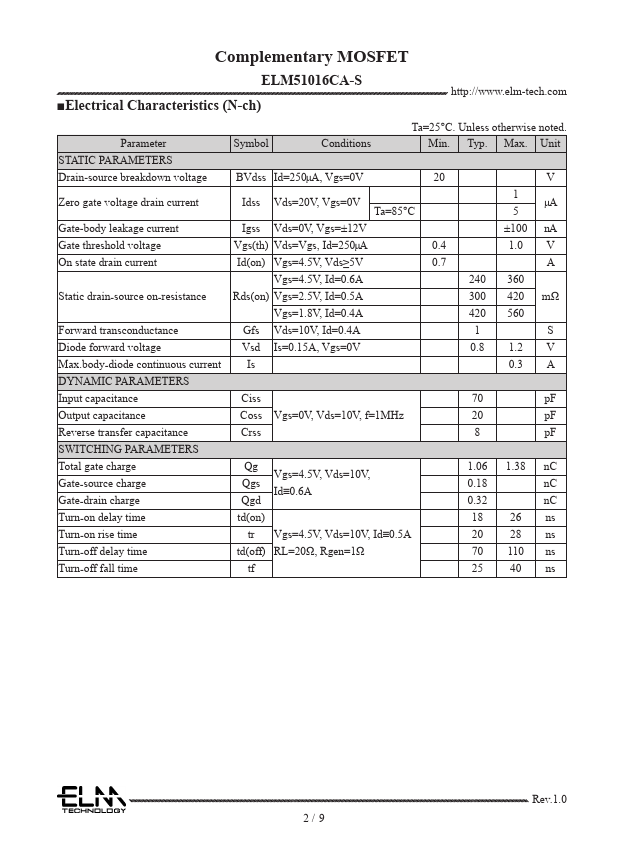

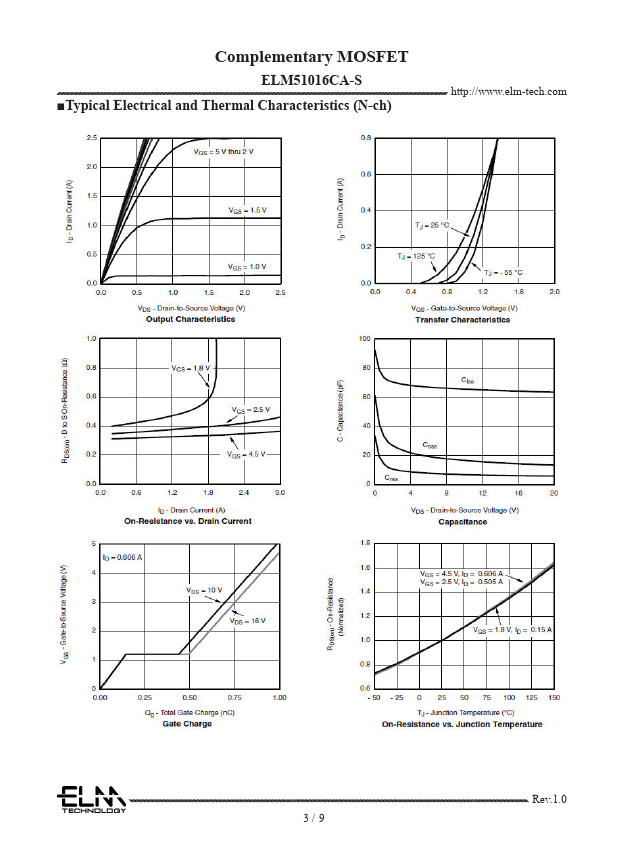

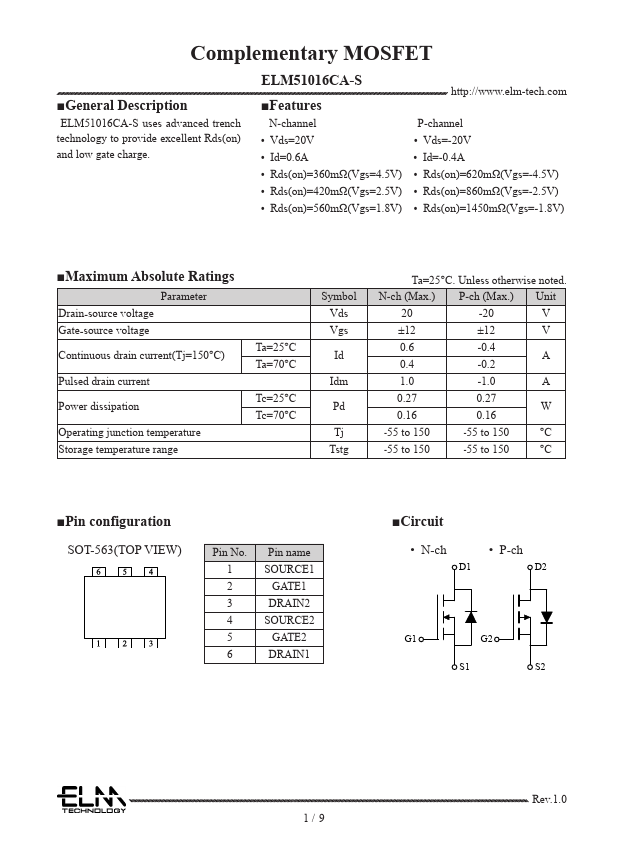

ELM51016CA-S Complementary MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM51016CA-S

Datasheet Details

Part number	ELM51016CA-S
Manufacturer	ELM
File Size	1.60 MB
Description	Complementary MOSFET
Datasheet	ELM51016CA-S Datasheet
Additional preview pages of the ELM51016CA-S datasheet.

Product details

Description

ELM51016CA-S uses advanced trench technology to provide excellent Rds(on) and low gate charge.

Features

N-channel.
Vds=20V.
Id=0.6A.
Rds(on)=360mΩ(Vgs=4.5V).
Rds(on)=420mΩ(Vgs=2.5V).
Rds(on)=560mΩ(Vgs=1.8V) http://www. elm-tech. com P-channel.
Vds=-20V.
Id=-0.4A.
Rds(on)=620mΩ(Vgs=-4.5V).
Rds(on)=860mΩ(Vgs=-2.5V).
Rds(on)=1450mΩ(Vgs=-1.8V).
Maximum Absolute Ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating juncti.
