ELM52325AA-S - Single P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

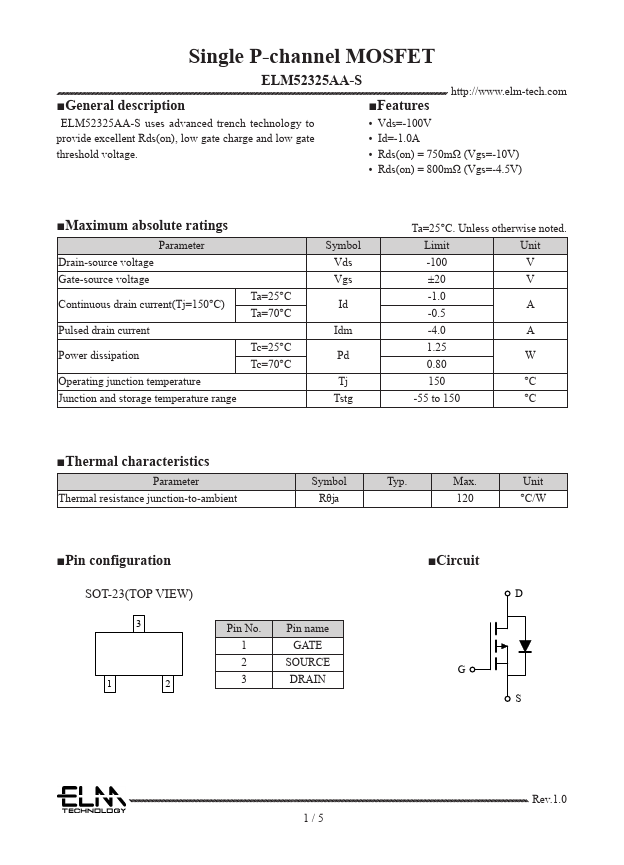

ELM52325AA-S Single P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM52325AA-S

Datasheet Details

Part number	ELM52325AA-S
Manufacturer	ELM
File Size	775.56 KB
Description	Single P-channel MOSFET
Datasheet	ELM52325AA-S Datasheet

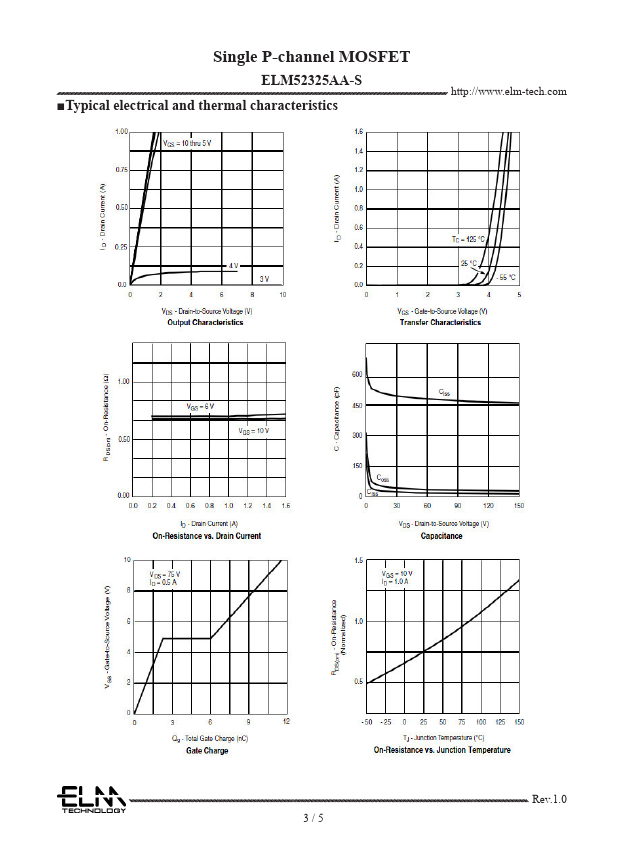

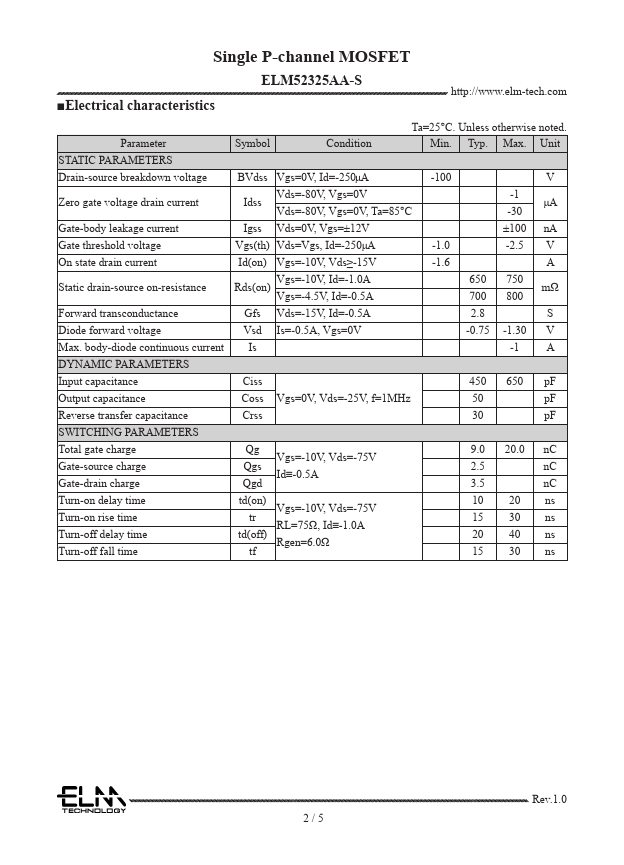

Additional preview pages of the ELM52325AA-S datasheet.

Product details

Features

ELM52325AA-S uses advanced trench technology to.
Vds=-100V provide excellent Rds(on), low gate charge and low gate.
Id=-1.0A threshold voltage.
Rds(on) = 750mΩ (Vgs=-10V).
Rds(on) = 800mΩ (Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Junction and storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=7.
