ELM52444WSA-N - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

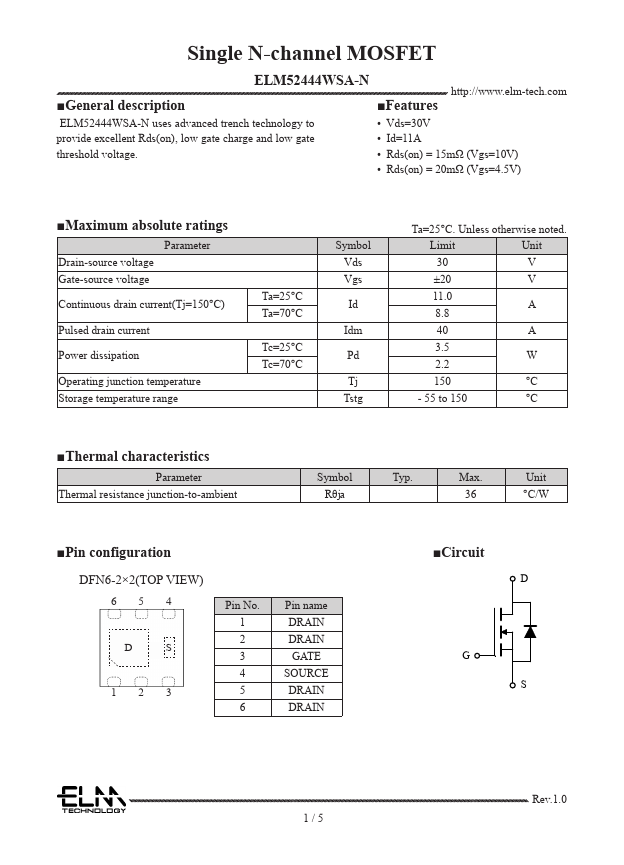

ELM52444WSA-N Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM52444WSA-N

Datasheet Details

Part number	ELM52444WSA-N
Manufacturer	ELM
File Size	971.41 KB
Description	Single N-channel MOSFET
Datasheet	ELM52444WSA-N Datasheet

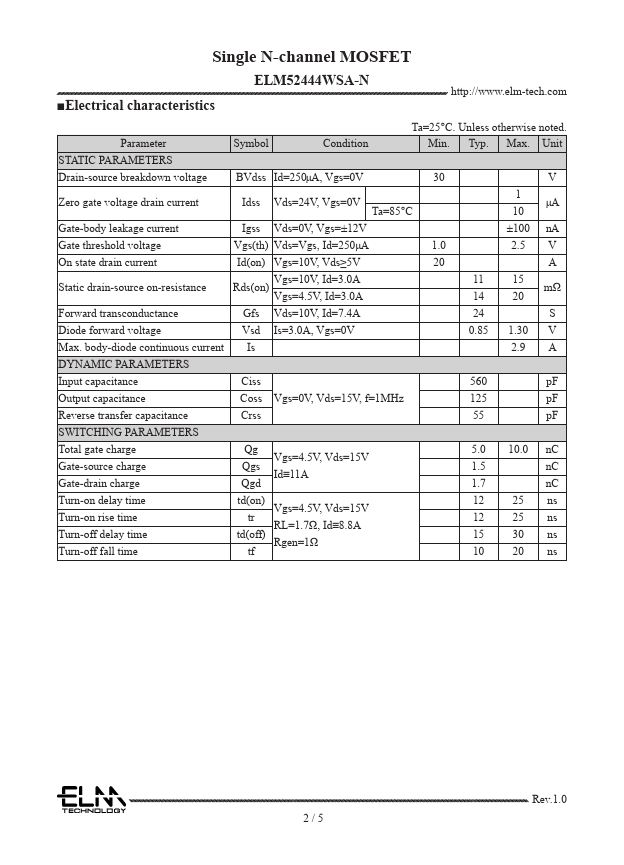

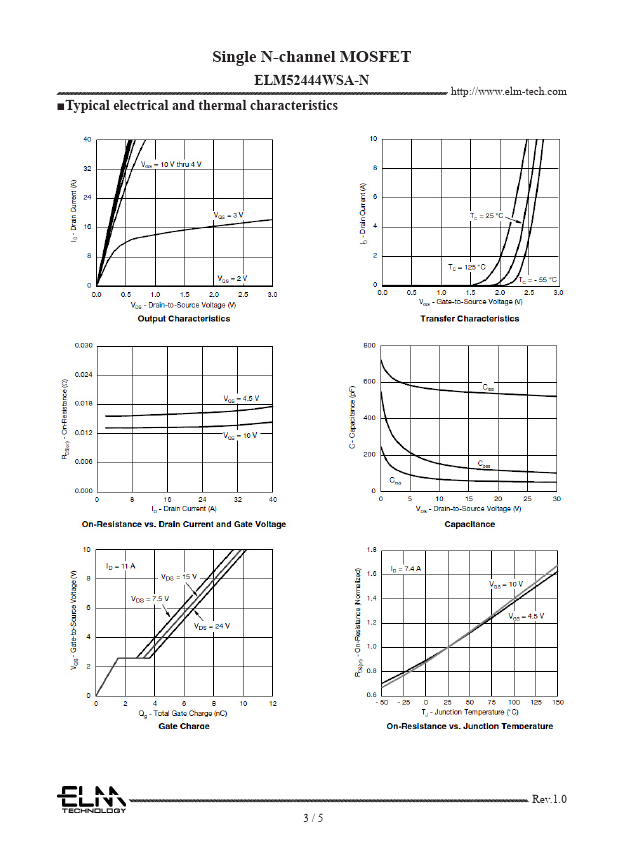

Additional preview pages of the ELM52444WSA-N datasheet.

Product details

Features

ELM52444WSA-N uses advanced trench technology to.
Vds=30V provide excellent Rds(on), low gate charge and low gate.
Id=11A threshold voltage.
Rds(on) = 15mΩ (Vgs=10V).
Rds(on) = 20mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol Vds Vgs.
