ELM53414CA-S - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

ELM53414CA-S Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM53414CA-S

Datasheet Details

Part number	ELM53414CA-S
Manufacturer	ELM
File Size	790.49 KB
Description	Single N-channel MOSFET
Datasheet	ELM53414CA-S Datasheet

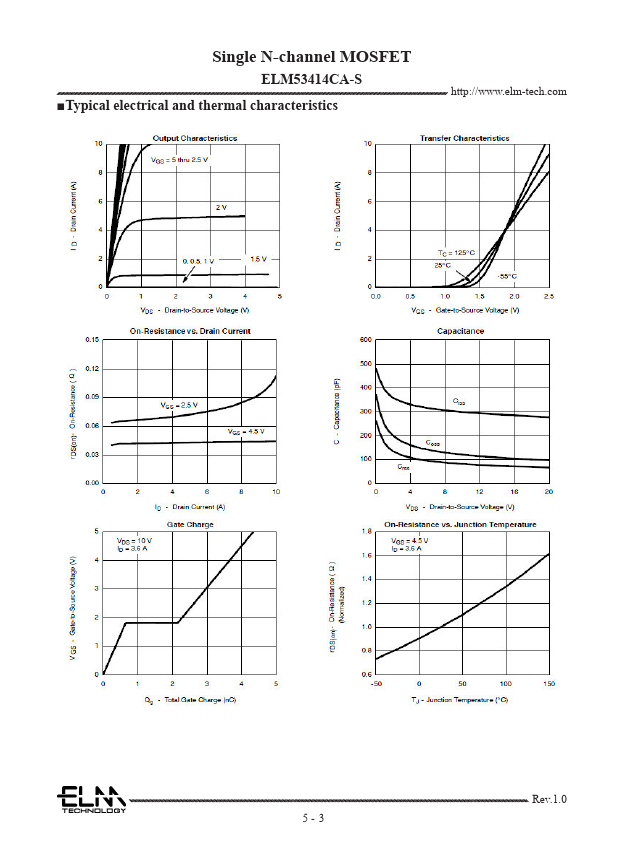

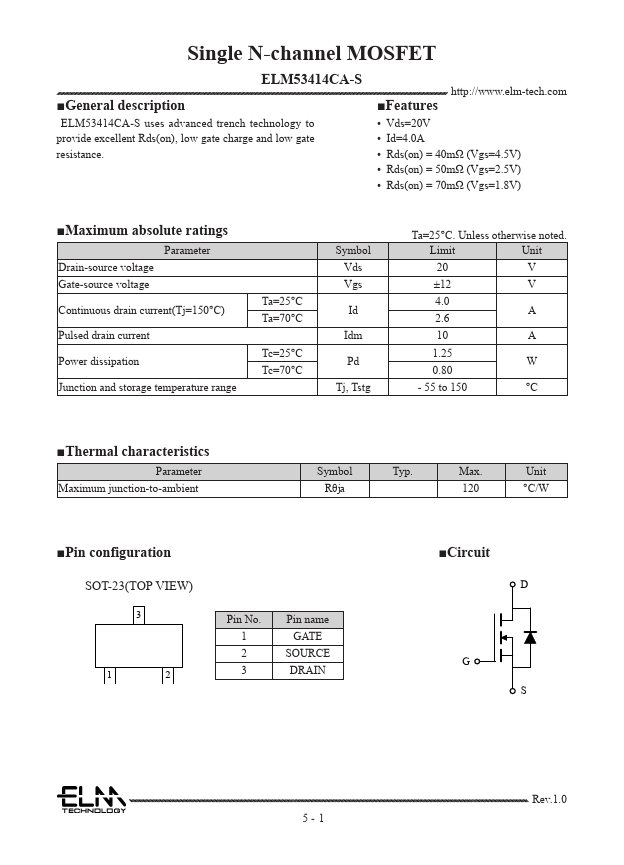

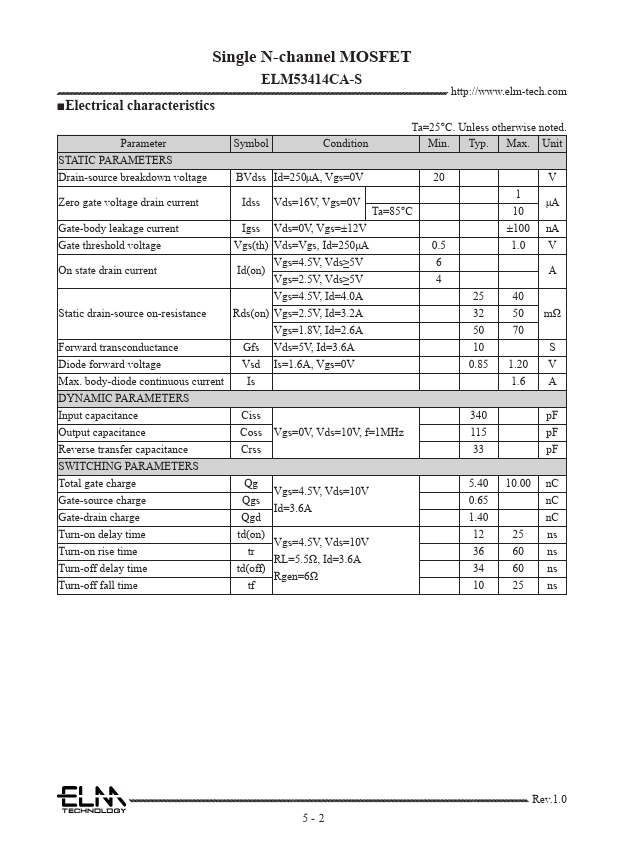

Additional preview pages of the ELM53414CA-S datasheet.

Product details

Description

ELM53414CA-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate resistance.

Features

Vds=20V.
Id=4.0A.
Rds(on) = 40mΩ (Vgs=4.5V).
Rds(on) = 50mΩ (Vgs=2.5V).
Rds(on) = 70mΩ (Vgs=1.8V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Junction and storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol Vds Vgs Id Idm Pd Tj, Tstg Ta=25°C. Unless otherwise noted. Limit Unit 20 V ±12 V 4.0 A 2.6 10 A 1.25 W 0.80.
