ELM53814WA-N - Dual N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

ELM53814WA-N Dual N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM53814WA-N

Datasheet Details

Part number	ELM53814WA-N
Manufacturer	ELM
File Size	880.04 KB
Description	Dual N-channel MOSFET
Datasheet	ELM53814WA-N Datasheet

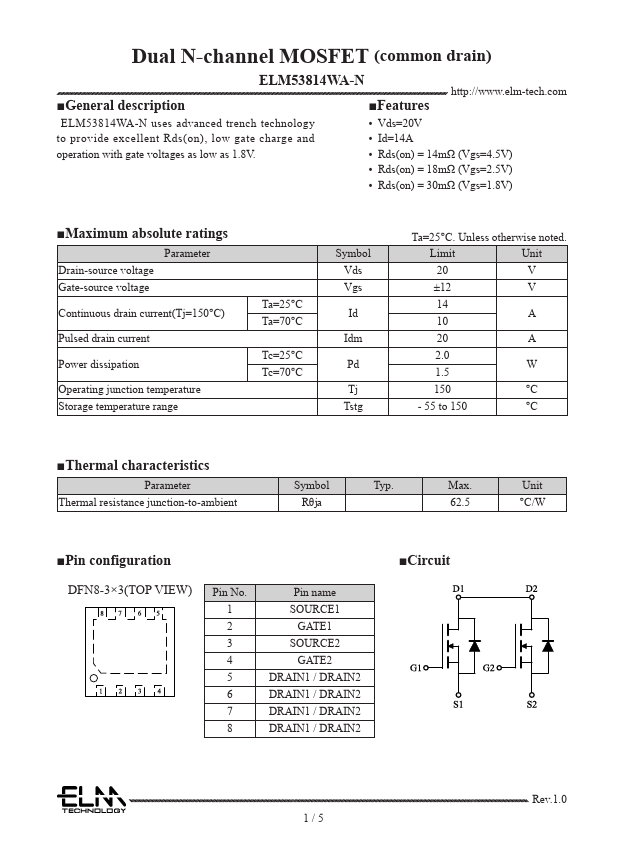

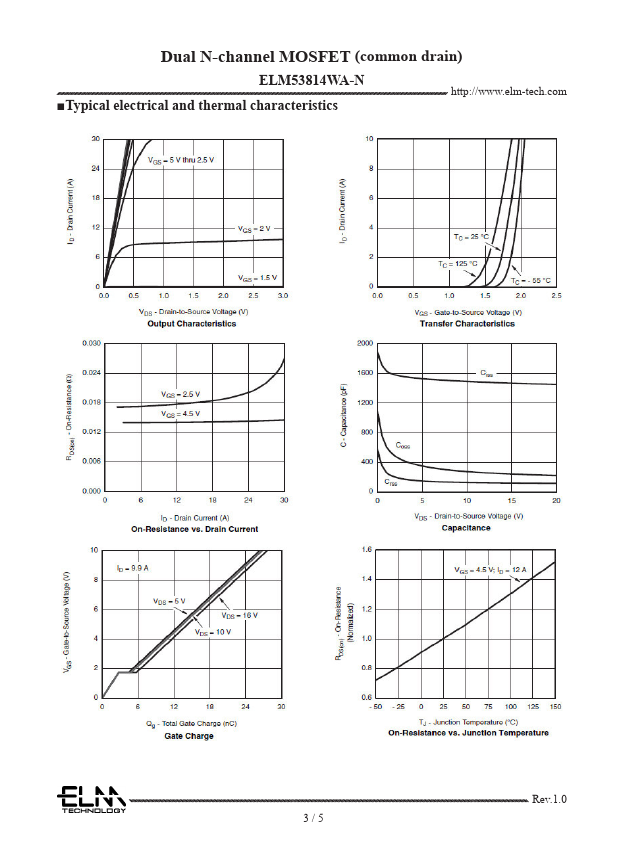

Additional preview pages of the ELM53814WA-N datasheet.

Product details

Features

ELM53814WA-N uses advanced trench technology.
Vds=20V to provide excellent Rds(on), low gate charge and.
Id=14A operation with gate voltages as low as 1.8V.
Rds(on) = 14mΩ (Vgs=4.5V).
Rds(on) = 18mΩ (Vgs=2.5V).
Rds(on) = 30mΩ (Vgs=1.8V).

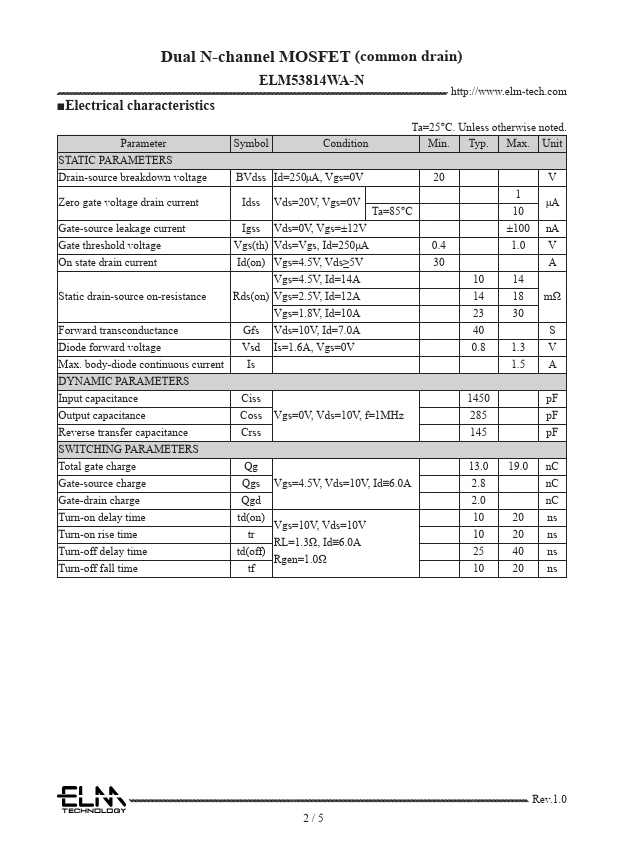

Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature r.
