ELM53415EAA-S - Single P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

ELM53415EAA-S Single P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM53415EAA-S

Datasheet Details

Part number	ELM53415EAA-S
Manufacturer	ELM
File Size	854.52 KB
Description	Single P-channel MOSFET
Datasheet	ELM53415EAA-S Datasheet
Additional preview pages of the ELM53415EAA-S datasheet.

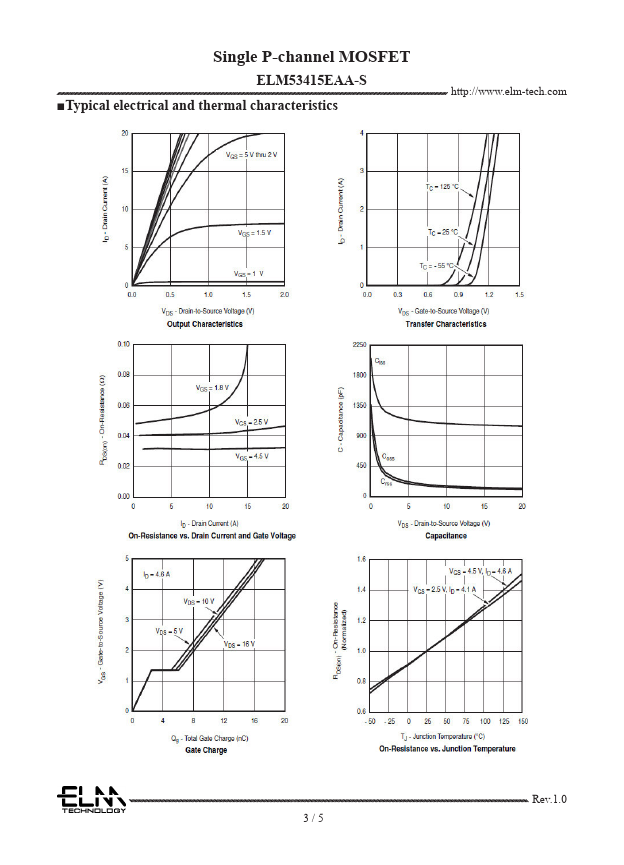

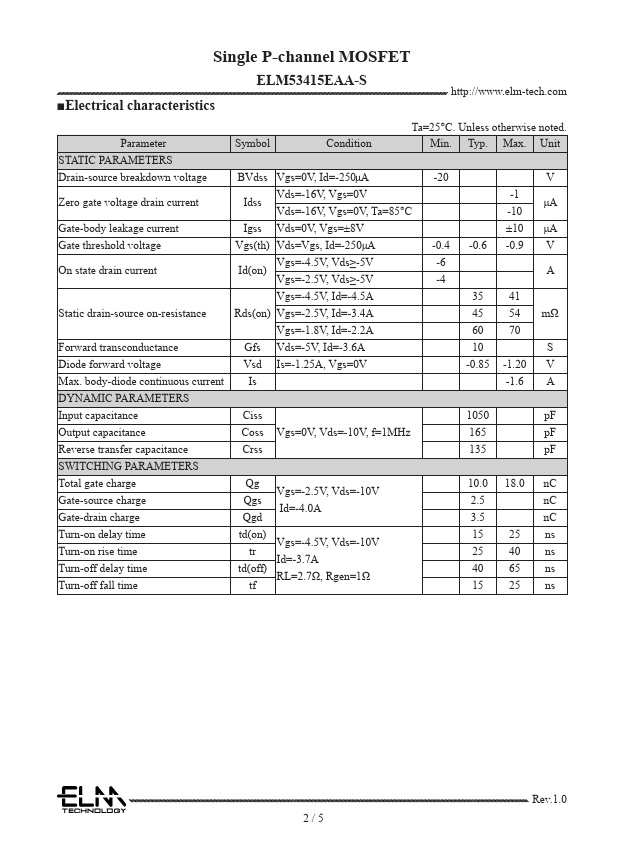

Product details

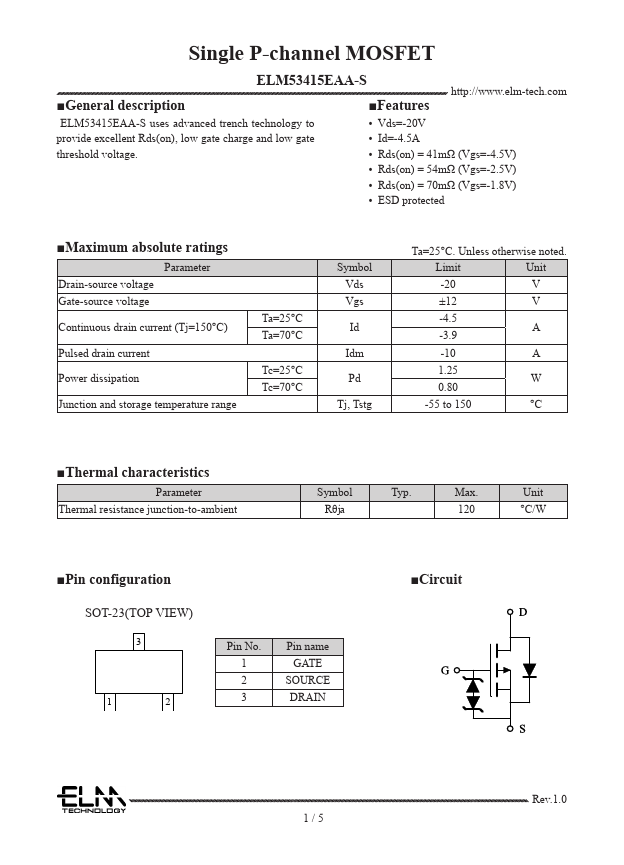

Features

ELM53415EAA-S uses advanced trench technology to.
Vds=-20V provide excellent Rds(on), low gate charge and low gate.
Id=-4.5A threshold voltage.
Rds(on) = 41mΩ (Vgs=-4.5V).
Rds(on) = 54mΩ (Vgs=-2.5V).
Rds(on) = 70mΩ (Vgs=-1.8V).
ESD protected.
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Tj=150°C) Pulsed drain current Power dissipation Junction and storage temperature ran.
