CY7C1440KV25 - 36-Mbit (1M x 36) Pipelined Sync SRAM

Cypress Semiconductor

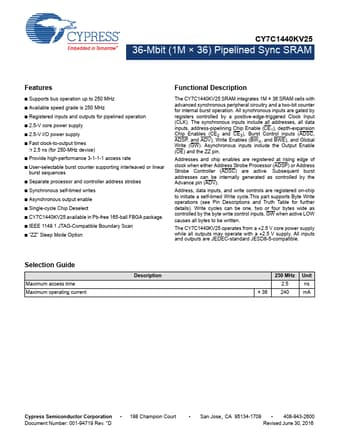

CY7C1440KV25 Datasheet Preview — Preview of CY7C1440KV25 PDF

Datasheet Details

Part number	CY7C1440KV25
Manufacturer	Cypress Semiconductor
File Size	1.10 MB
Description	36-Mbit (1M x 36) Pipelined Sync SRAM
Datasheet	CY7C1440KV25-CypressSemiconductor.pdf

CY7C1440KV25 Product details

Description

The CY7C1440KV25 SRAM integrates 1M × 36 SRAM cells with advanced synchronous peripheral circuitry and a two-bit counter for internal burst operation.

Features

Supports bus operation up to 250 MHz.
Available speed grade is 250 MHz.
Registered inputs and outputs for pipelined operation.
2.5-V core power supply.
2.5-V I/O power supply.
Fast clock-to-output times.
2.5 ns (for 250-MHz device).
Provide high-performance 3-1-1-1 access rate.
User-selectable burst counter supporting interleaved or linear burst sequences.
Separate processor and controller address strobes.
Synchronous self-timed writes.
