CY7C1441AV25 - 36-Mbit Flow-Through SRAM

Cypress Semiconductor

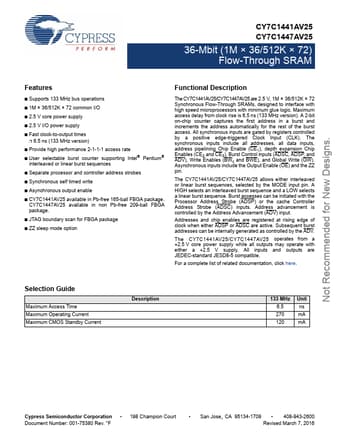

CY7C1441AV25 Datasheet Preview — Preview of CY7C1441AV25 PDF

Datasheet Details

Part number	CY7C1441AV25
Manufacturer	Cypress Semiconductor
File Size	1.24 MB
Description	36-Mbit Flow-Through SRAM
Datasheet	CY7C1441AV25-CypressSemiconductor.pdf

CY7C1441AV25 Product details

Description

The CY7C1441AV25/CY7C1447AV25 are 2.5 V, 1M × 36/512K × 72 Synchronous Flow-Through SRAMs, designed to interface with high speed microprocessors with minimum glue lo

Features

Supports 133 MHz bus operations.
1M × 36/512K × 72 common I/O.
2.5 V core power supply.
2.5 V I/O power supply.
Fast clock-to-output times.
6.5 ns (133 MHz version).
Provide high performance 2-1-1-1 access rate.
User selectable burst counter supporting Intel Pentium interleaved or linear burst sequences.
Separate processor and controller address strobes.
Synchronous self timed write.
Asynchronous output enable.
CY7C1441AV25 available.
