CY7C1041G - 4-Mbit (256K words x 16 bit) Static RAM

Cypress

📥 Download Datasheet

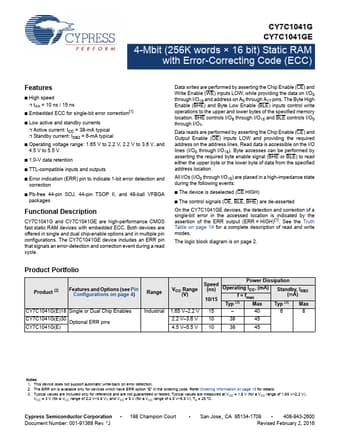

CY7C1041G Datasheet Preview — Preview of CY7C1041G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY7C1041G
Manufacturer	Cypress
File Size	563.41 KB
Description	4-Mbit (256K words x 16 bit) Static RAM
Datasheet	CY7C1041G-Cypress.pdf

CY7C1041G Product details

Description

CY7C1041G and CY7C1041GE are high-performance CMOS fast static RAM devices with embedded ECC.

Features

High speed.
tAA = 10 ns / 15 ns.
Embedded ECC for single-bit error correction[1].
Low active and standby currents.
Active current: ICC = 38-mA typical.
Standby current: ISB2 = 6-mA typical.
Operating voltage range: 1.65 V to 2.2 V, 2.2 V to 3.6 V, and 4.5 V to 5.5 V.
1.0-V data retention.
TTL-compatible inputs and outputs.
Error indication (ERR) pin to indicate 1-bit error detection and correction.
Pb-free 44-pin SOJ, 44-pin TSOP II, and 48.
