CY7C1049GN - 4-Mbit (512K words x 8 bit) Static RAM

Cypress

📥 Download Datasheet

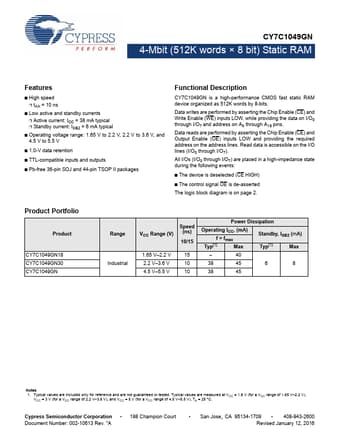

CY7C1049GN Datasheet Preview — Preview of CY7C1049GN PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY7C1049GN
Manufacturer	Cypress
File Size	432.28 KB
Description	4-Mbit (512K words x 8 bit) Static RAM
Datasheet	CY7C1049GN-Cypress.pdf

CY7C1049GN Product details

Description

CY7C1049GN is a high-performance CMOS fast static RAM device organized as 512K words by 8-bits.

Features

High speed.
tAA = 10 ns.
Low active and standby currents.
Active current: ICC = 38 mA typical.
Standby current: ISB2 = 6 mA typical.
Operating voltage range: 1.65 V to 2.2 V, 2.2 V to 3.6 V, and 4.5 V to 5.5 V.
1.0-V data retention.
TTL-compatible inputs and outputs.
Pb-free 36-pin SOJ and 44-pin TSOP II packages Functional.
