NESG2031M05 - NPN SiGe HIGH FREQUENCY TRANSISTOR

NESG2031M05 Description

www.DataSheet4U.com NEC's NPN SiGe NESG2031M05 HIGH FREQUENCY TRANSISTOR .
NEC's NESG2031M05 is fabricated using NEC s high voltage Silicon Germanium process (UHS2-HV), and is designed for a wide range of applications includi.

NESG2031M05 Features

* HIGH BREAKDOWN VOLTAGE SiGe TECHNOLOGY VCEO = 5 V (Absolute Maximum) LOW NOISE FIGURE: NF = 0.8 dBm at 2 GHz NF = 1.3 dBm at 5.2 GHz HIGH MAXIMUM STABLE GAIN: MSG = 21.5 dB at 2 GHz LOW PROFILE M05 PACKAGE: SOT-343 footprint, with a height of only 0.59 mm Flat lead style for bett

NESG2031M05 Applications

* including low noise amplifiers, medium power amplifiers, and oscillators. NEC s low profile, flat lead style M05 Package provides high frequency performance for compact wireless designs. ELECTRICAL CHARACTERISTICS (TA = 25°C) PART NUMBER PACKAGE OUTLINE SYMBOLS NF Ga NF Ga RF MSG |S21E| P1dB OIP3 fT Cr

📥 Download Datasheet

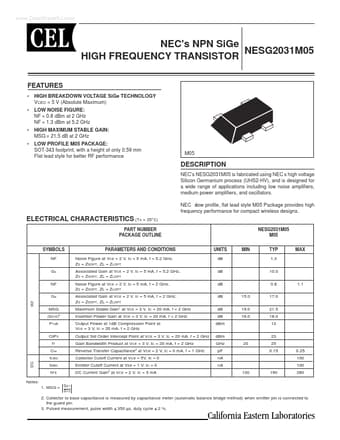

Preview of NESG2031M05 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NESG2031M05
Manufacturer
CEL
File Size
183.30 KB
Datasheet
NESG2031M05_CEL.pdf
Description
NPN SiGe HIGH FREQUENCY TRANSISTOR
