OPA3875, OPA3875_Burr Single 2:1 High-Speed Video Multiplexer

Burr-Brown

Description

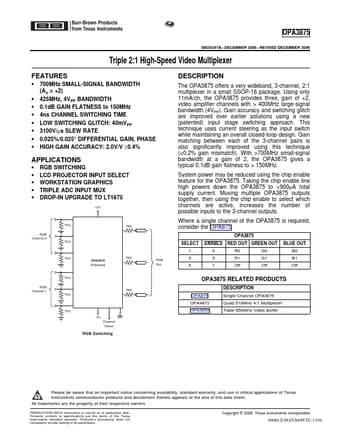

BurrĆBrown Products from Texas Instruments OPA3875 SBOS341B * DECEMBER 2006 * REVISED DECEMBER 2006 Triple 2:1 High-Speed Video Mult.
The OPA3875 offers a very wideband, 3-channel, 2:1 multiplexer in a small SSOP-16 package.

📥 Download Datasheet

OPA3875 Datasheet Preview — This datasheet PDF includes multiple part numbers: OPA3875, OPA3875_Burr. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: OPA3875, OPA3875_Burr
Manufacturer: Burr-Brown
File Size: 602.74 KB
Datasheet: OPA3875_Burr-Brown.pdf
Description: Single 2:1 High-Speed Video Multiplexer
Note: This datasheet PDF includes multiple part numbers: OPA3875, OPA3875_Burr.
Please refer to the document for exact specifications by model.

Features

* 700MHz SMALL-SIGNAL BANDWIDTH (AV = +2) 425MHz, 4VPP BANDWIDTH 0.1dB GAIN FLATNESS to 150MHz 4ns CHANNEL SWITCHING TIME LOW SWITCHING GLITCH: 40mVPP 3100V/µs SLEW RATE 0.

Applications

* RGB SWITCHING LCD PROJECTOR INPUT SELECT WORKSTATION GRAPHICS TRIPLE ADC INPUT MUX DROP-IN UPGRADE TO LT1675 +5V 75W RGB Channel 0 75W 75W ENABLE 0 0 1 RED OUT GREEN OUT R0 R1 Off G0 G1 Off BLUE OUT B0 B1 Off 75W OPA3875 (Patented) RGB Out 0 X 75W RGB Channel 1 75W OPA3875 RELATED PRODUCT
