OPA388 - Input/Output Operational Amplifiers

Description

The OPAx388 (OPA388, OPA2388, and OPA4388) series of precision operational amplifiers are ultra-low noise, fast-settling, zero-drift, zero-crossover devices that provide rail-to-rail input and output operation.

Features

  • Ultra-low offset voltage: ±0.25 µV.
  • Zero drift: ±0.005 µV/°C.
  • Zero crossover: 140-dB CMRR true RRIO.
  • Low noise: 7.0 nV√Hz at 1 kHz.
  • No 1/f noise: 140 nVPP (0.1 Hz to 10 Hz).
  • Fast settling: 2 µs (1 V to 0.01%).
  • Gain bandwidth: 10 MHz.
  • Single supply: 2.5 V to 5.5 V.
  • Dual supply: ±1.25 V to ±2.75 V.
  • True rail-to-rail input and output.
  • EMI/RFI filtered inputs.
  • Industry-standard packages:.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OPA380 Precision / High-Speed Transimpedance Amplifier Burr-Brown
OPA381 Precision / Low Power / 18MHz Transimpedance Amplifier Burr-Brown
OPA3832 Low-Power / Single-Supply / Wideband Operational Amplifier Burr-Brown
OPA3875 Single 2:1 High-Speed Video Multiplexer Burr-Brown
OPA300 CMOS OPERATIONAL AMPLIFIER Burr-Brown

Other Datasheets by Texas Instruments

Part Number Description
OPA3832 Fixed-Gain Operational Amplifier
OPA3875 Triple 2:1 High-Speed Video Multiplexer
OPA313 1.8-V CMOS OPERATIONAL AMPLIFIER
OPA314 1.8-V CMOS Operational Amplifier
OPA314-Q1 1.8-V CMOS Operational Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

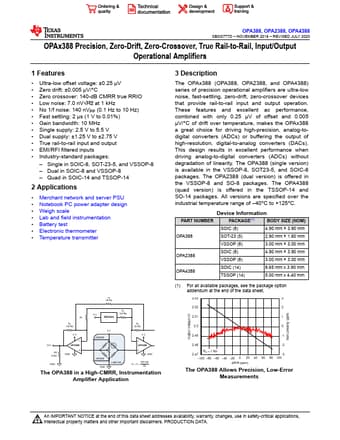

OPA388, OPA2388, OPA4388 SBOS777D – NOVEMBER 2016 – REVISED JULY 2020 OPAx388 Precision, Zero-Drift, Zero-Crossover, True Rail-to-Rail, Input/Output Operational Amplifiers 1 Features • Ultra-low offset voltage: ±0.25 µV • Zero drift: ±0.005 µV/°C • Zero crossover: 140-dB CMRR true RRIO • Low noise: 7.0 nV√Hz at 1 kHz • No 1/f noise: 140 nVPP (0.1 Hz to 10 Hz) • Fast settling: 2 µs (1 V to 0.01%) • Gain bandwidth: 10 MHz • Single supply: 2.5 V to 5.5 V • Dual supply: ±1.25 V to ±2.
