OPA320 - CMOS Operational Amplifier

Description

The OPA320 (single) and OPA2320 (dual) are a new generation of precision, low-voltage CMOS operational amplifiers optimized for very low noise and wide bandwidth while operating on a low quiescent current of only 1.45 mA.

The OPA320 series is ideal for low-power, singlesupply applications.

Features

  • 1 Precision with Zero-Crossover Distortion:.
  • Low Offset Voltage: 150 µV (Maximum).
  • High CMRR: 114 dB.
  • Rail-to-Rail I/O.
  • Low Input Bias Current: 0.9 pA (Maximum).
  • Low Noise: 7 nV/√Hz at 10 kHz.
  • Wide Bandwidth: 20 MHz.
  • Slew Rate: 10 V/µs.
  • Quiescent Current: 1.45 mA/Ch.
  • Single-Supply Voltage Range: 1.8 V to 5.5 V.
  • OPA320S and OPA2320S:.
  • IQ in Shutdown Mode: 0.1 µA.
  • Unity-Gain Stable.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OPA300 CMOS OPERATIONAL AMPLIFIER Burr-Brown
OPA301 CMOS OPERATIONAL AMPLIFIER Burr-Brown
OPA302 LOW-NOISE OPERATIONAL AMPLIFIERS AudioFeel
OPA333 CMOS OPERATIONAL AMPLIFIERS Burr-Brown Corporation
OPA334 0.05UV/C max / SINGLE-SUPPLY CMOS OPERATIONAL AMPLIFIERS Burr-Brown

Other Datasheets by Texas Instruments

Part Number Description
OPA320-Q1 CMOS Operational Amplifier
OPA320S CMOS Operational Amplifier
OPA322 CMOS Operational Amplifier
OPA322-Q1 CMOS Operational Amplifier
OPA322S CMOS Operational Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

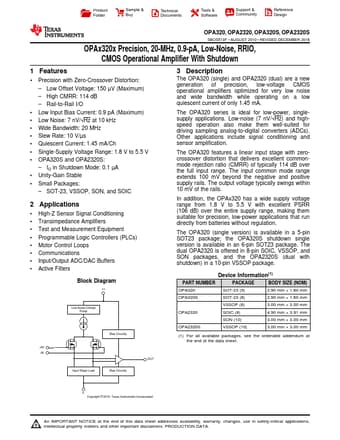

View original datasheet text
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design OPA320, OPA2320, OPA320S, OPA2320S SBOS513F – AUGUST 2010 – REVISED DECEMBER 2016 OPAx320x Precision, 20-MHz, 0.9-pA, Low-Noise, RRIO, CMOS Operational Amplifier With Shutdown 1 Features •1 Precision with Zero-Crossover Distortion: – Low Offset Voltage: 150 µV (Maximum) – High CMRR: 114 dB – Rail-to-Rail I/O • Low Input Bias Current: 0.9 pA (Maximum) • Low Noise: 7 nV/√Hz at 10 kHz • Wide Bandwidth: 20 MHz • Slew Rate: 10 V/µs • Quiescent Current: 1.45 mA/Ch • Single-Supply Voltage Range: 1.8 V to 5.5 V • OPA320S and OPA2320S: – IQ in Shutdown Mode: 0.
