OPA380, OPA380_Burr Precision / High-Speed Transimpedance Amplifier

OPA380 Description

OPA380 OPA2380 SBOS291G * NOVEMBER 2003 * REVISED SEPTEMBER 2007 Precision, High-Speed Transimpedance Amplifier .
The OPA380 family of transimpedance amplifiers provides high-speed (90MHz Gain Bandwidth [GBW]) operation, with extremely high precision, excellent lo.

OPA380 Features

* D > 1MHz TRANSIMPEDANCE BANDWIDTH D EXCELLENT LONG-TERM VOS STABILITY D BIAS CURRENT: 50pA (max) D OFFSET VOLTAGE: 25µV (max) D DYNAMIC RANGE: 4 to 5 Decades D DRIFT: 0.1µV/°C (max) D GAIN BANDWIDTH: 90MHz D QUIESCENT CURRENT: 7.5mA D SUPPLY RANGE: 2.7V to 5.5V D SINGLE AND DUAL VERSIONS D MicroSize

OPA380 Applications

* D PHOTODIODE MONITORING D PRECISION I/V CONVERSION D OPTICAL AMPLIFIERS D CAT-SCANNER FRONT-END 2 Photodiode 1MΩ 3 RF +5V 7 OPA380 VOUT 6 (0V to 4.4V) 67pF 100kΩ RP (Optional Pulldown Resistor)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA380, OPA380_Burr. Please refer to the document for exact specifications by model.

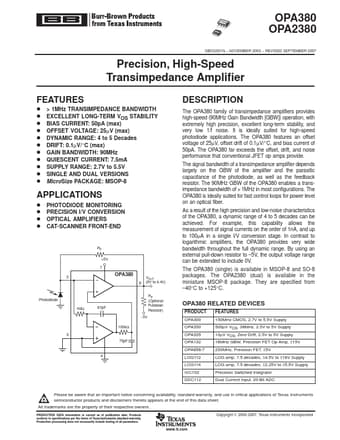

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA380, OPA380_Burr
Manufacturer
Burr-Brown
File Size
1.06 MB
Datasheet
OPA380_Burr-BrownCorporation.pdf
Description
Precision / High-Speed Transimpedance Amplifier
Note
This datasheet PDF includes multiple part numbers: OPA380, OPA380_Burr.
Please refer to the document for exact specifications by model.
