OPA302 - LOW-NOISE OPERATIONAL AMPLIFIERS

📥 Download Datasheet

Datasheet Details

Part number OPA302
Manufacturer AudioFeel
File Size 119.57 KB
Description LOW-NOISE OPERATIONAL AMPLIFIERS
Datasheet download datasheet OPA302 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OPA300 CMOS OPERATIONAL AMPLIFIER Burr-Brown
OPA301 CMOS OPERATIONAL AMPLIFIER Burr-Brown
OPA313 1.8-V CMOS OPERATIONAL AMPLIFIER Texas Instruments
OPA314 1.8-V CMOS Operational Amplifier Texas Instruments
OPA314-Q1 1.8-V CMOS Operational Amplifier Texas Instruments

Other Datasheets by AudioFeel

Part Number Description

Full PDF Text Transcription

Click to expand full text

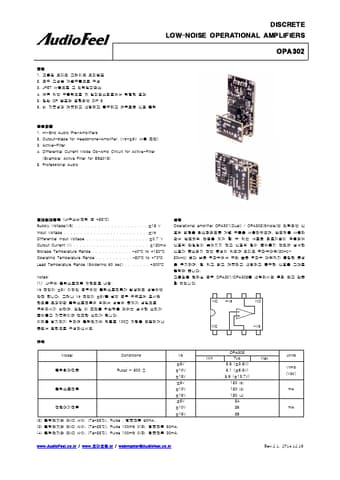

DISCRETE LOW-NOISE OPERATIONAL AMPLIFIERS OPA302 특징 1. 고음질 오디오 그레이드 오피앰프 2. 모두 고성능 개별부품으로 구성 3. JFET 사용으로 고 입력임피던스 4. 여유 있는 구동력으로 저 임피던스회로에서 탁월한 효과 5. 일반 OP 앰프와 호환되는 DIP 8 6. 비 자극성과 깨끗하고 선명하고 풍부하고 여유로운 신호 출력 응용제품 1. Hi-End Audio Pre-Amplifiers 2. Output-stage for Headphone-Amplifier. (Vs=±5V 사용 조건) 3. Active-Filter 4. Differential Current Mode Op-Amp Circuit for Active-Filter (Example: Active Filter for ES9018) 5. Professional Audio 절대최대정격 (내부소비전력 @ +25°C) Supply Voltage(VS) . . . . . . . . . . . . . . . . . . . . . . ±18 V Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .±Vs Differential Input Voltage . . . . . . . . . . . . . . . . . . . ±0.7 V Output Current (1) . . . . . . . . . . . . . . . . . . . . . . . ±120mA Storage Temperature Range . . . . . . . . . . . .
