OPA3832, OPA3832_Burr Low-Power / Single-Supply / Wideband Operational Amplifier

OPA3832 Description

BurrĆBrown Products from Texas Instruments OPA OP A3 832 3832 ® OPA3832 SBOS370 * DECEMBER 2006 Triple, Low-Power, High-Speed, Fixed-Gain.
Rail-to-Rail Output SINGLES OPA830 OPA832 OPA690 OPA820 DUALS OPA2830 OPA2832 OPA2690 OPA2822 TRIPLES. OPA3690. QUADS OPA4.

OPA3832 Features

* HIGH BANDWIDTH: 80MHz (G = +2) LOW SUPPLY CURRENT: 3.9mA/ch (VS = +5V) FLEXIBLE SUPPLY RANGE: ±1.5V to ±5.5V Dual Supply +3V to +11V Single Supply INPUT RANGE INCLUDES GROUND ON SINGLE SUPPLY 4.9VPP OUTPUT SWING ON +5V SUPPLY HIGH SLEW RATE: 350V/µs LOW INPUT VOLTAGE NO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA3832, OPA3832_Burr. Please refer to the document for exact specifications by model.

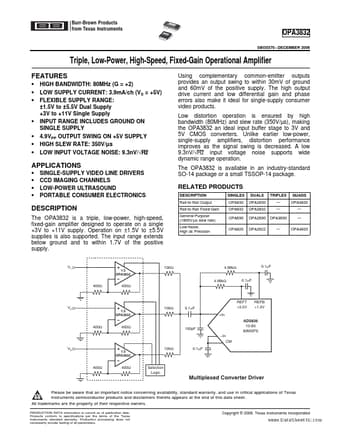

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA3832, OPA3832_Burr
Manufacturer
Burr-Brown
File Size
609.43 KB
Datasheet
OPA3832_Burr-BrownCorporation.pdf
Description
Low-Power / Single-Supply / Wideband Operational Amplifier
Note
This datasheet PDF includes multiple part numbers: OPA3832, OPA3832_Burr.
Please refer to the document for exact specifications by model.
