AOZ15333DI 5V/3.5A Type-C Protection Switch

AOZ15333DI Description

AOZ15333DI 5V/3.5A ECPowerTM Type-C Protection Switch With 39V Blocking Capability General .
The AOZ15333DI is a current-limited load switch targeting applications that require comprehensive protections.

AOZ15333DI Features

* very low quiescent current of 125 µA. The supply current reduces to less than 6 µA in shutdown. It has under-voltage lockout, over-voltage protection (OVP) and over temperature protections. The AOZ15333DI has True Reverse-Current Blocking (TRCB) protection to avoid undesired reverse-current from VOU

AOZ15333DI Applications

* that require comprehensive protections. The input operating voltage range is between 3.3 V and 5.5 V. The output terminal is rated 39 V absolute maximum. The internal current limiting circuit protects the supply from large load current. The current limit level is set with an external resistor. The s

📥 Download Datasheet

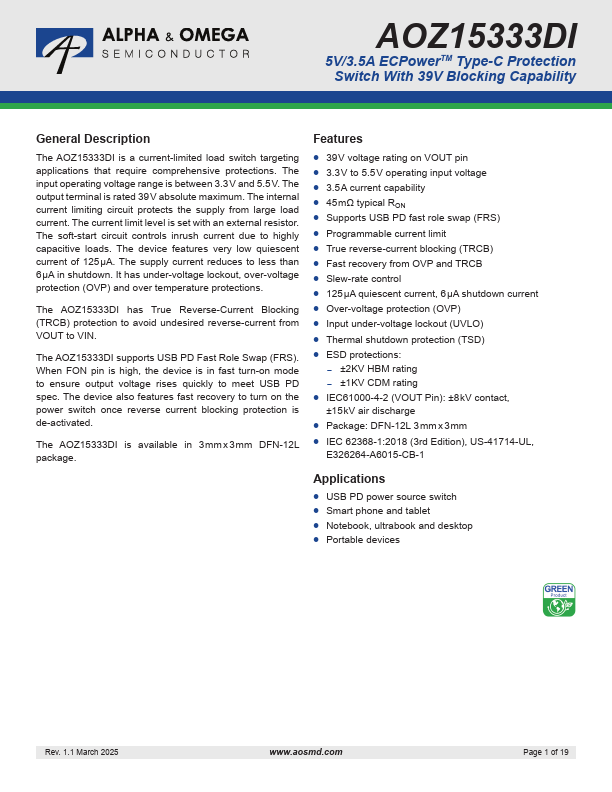

Preview of AOZ15333DI PDF

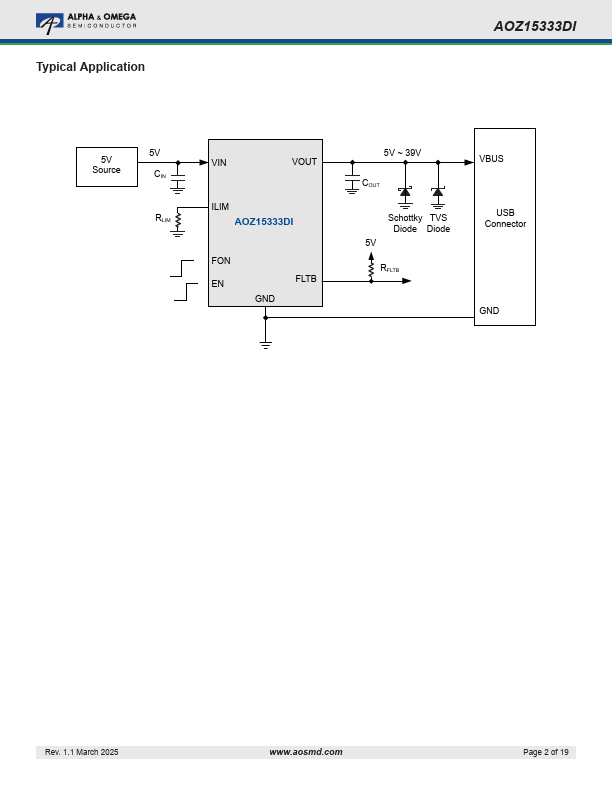

datasheet Preview Page 2 datasheet Preview Page 3
