AOZ1013 - 3A Simple Buck Regulator

Datasheet Summary

Description

The AOZ1013 is a high efficiency, simple to use, 3A buck regulator.

The AOZ1013 works from a 4.5V to 16V input voltage range, and provides up to 3A of continuous output current with an output voltage adjustable down to 0.8V.

Features

  • 4.5V to 16V operating input voltage range.
  • 50 mΩ internal PFET switch for high efficiency: up to 95%.
  • Internal soft start.
  • Output voltage adjustable to 0.8V.
  • 3A continuous output current.
  • Fixed 500kHz PWM operation.
  • Cycle-by-cycle current limit.
  • Short-circuit protection.
  • Thermal shutdown.
  • Small size SO-8 packages.

📥 Download Datasheet

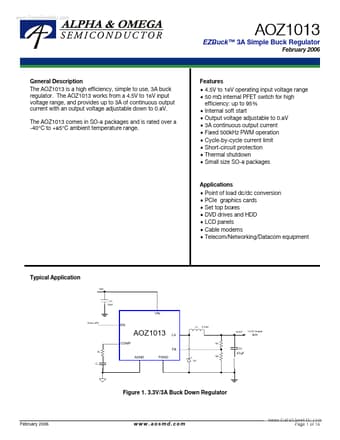

Datasheet preview – AOZ1013

Datasheet Details

Part number AOZ1013
Manufacturer Alpha & Omega Semiconductors
File Size 611.99 KB
Description 3A Simple Buck Regulator
Datasheet download datasheet AOZ1013 Datasheet
Additional preview pages of the AOZ1013 datasheet.
