AOZ1020 - 2A Synchronous Buck Regulator

Datasheet Summary

Description

The AOZ1020 is a synchronous high efficiency, simple to use, 2A buck regulator.

The AOZ1020 works from a 4.5V to 16V input voltage range, and provides up to 2A of continuous output current with an output voltage adjustable down to 0.8V.

Features

  • 4.5V to 16V operating input voltage range.
  • Synchronous rectification: 130mΩ internal high-side switch and 65mΩ internal low-side switch.
  • High efficiency: up to 95%.
  • Internal soft start.
  • Active high power good state.
  • Output voltage adjustable to 0.8V.
  • 2A continuous output current.
  • Fixed 500kHz PWM operation.
  • Cycle-by-cycle current limit.
  • Pre-bias start-up.
  • Short-circuit protection.
  • Thermal shutdown.
  • Small size SO-8 packages Applica.

📥 Download Datasheet

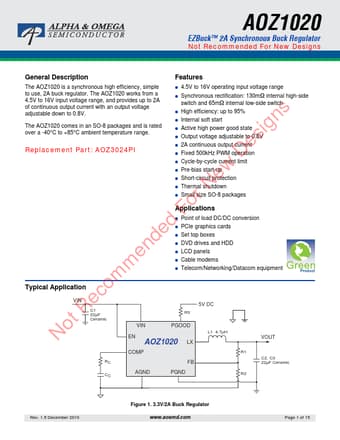

Datasheet preview – AOZ1020

Datasheet Details

Part number AOZ1020
Manufacturer Alpha and Omega Semiconductors
File Size 368.02 KB
Description 2A Synchronous Buck Regulator
Datasheet download datasheet AOZ1020 Datasheet
Additional preview pages of the AOZ1020 datasheet.

📁 Similar Datasheet

  • AOZ1022DI-01 - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1010 - 2A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1012D - 3A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1013 - 3A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1014 - 5A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1016 - 2A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1017A - 3A Simple Regulator (Alpha & Omega Semiconductors)
  • AOZ1031AI - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1033AI - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1034 - 4A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
Other Datasheets by Alpha and Omega Semiconductors
  • AOZ1021 - EZBuck 3A Synchronous Buck Regulator
  • AOZ1024D - EZBuck 4A Synchronous Buck Regulator
  • AOZ1015 - EZBuck 1.5A Synchronous Buck Regulator
  • AOZ1017 - EZBuck 3A Simple Regulator
  • AOZ1018 - EZBuck 2A Simple Regulator
  • AOZ1019 - EZBuck 2A Simple Regulator

Full PDF Text Transcription

Click to expand full text
AOZ1020 EZBuck™ 2A Synchronous Buck Regulator Not Recommended For New Designs Not Recommended For New Designs General Description The AOZ1020 is a synchronous high efficiency, simple to use, 2A buck regulator. The AOZ1020 works from a 4.5V to 16V input voltage range, and provides up to 2A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1020 comes in an SO-8 packages and is rated over a -40°C to +85°C ambient temperature range. Replacement Part: AOZ3024PI Features ● 4.5V to 16V operating input voltage range ● Synchronous rectification: 130mΩ internal high-side switch and 65mΩ internal low-side switch ● High efficiency: up to 95% ● Internal soft start ● Active high power good state ● Output voltage adjustable to 0.
