AOZ1015 - EZBuck 1.5A Synchronous Buck Regulator

Datasheet Summary

Description

The AOZ1015 is a high efficiency, simple to use, 1.5A buck regulator.

The AOZ1015 works from a 4.5V to 16V input voltage range, and provides up to 1.5A of continuous output current with an output voltage adjustable down to 0.8V.

Features

  • 4.5V to 16V operating input voltage range 130mΩ internal PFET switch for high efficiency: up to 95% Internal Schottky diode Internal soft start Output voltage adjustable to 0.8V 1.5A continuous output current Fixed 500kHz PWM operation Cycle-by-cycle current limit Short-circuit protection Under voltage lockout Output over voltage protection Thermal shutdown Small size SO-8 package.

📥 Download Datasheet

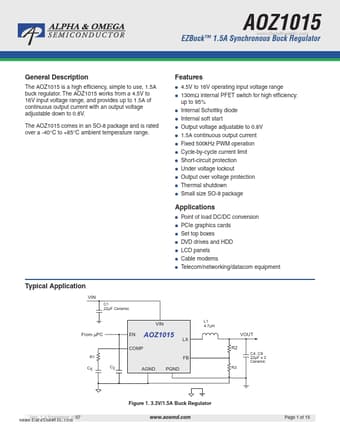

Datasheet preview – AOZ1015

Datasheet Details

Part number AOZ1015
Manufacturer Alpha and Omega Semiconductors
File Size 748.97 KB
Description EZBuck 1.5A Synchronous Buck Regulator
Datasheet download datasheet AOZ1015 Datasheet
Additional preview pages of the AOZ1015 datasheet.

📁 Similar Datasheet

  • AOZ1010 - 2A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1012D - 3A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1013 - 3A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1014 - 5A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1016 - 2A Simple Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1017A - 3A Simple Regulator (Alpha & Omega Semiconductors)
  • AOZ1022DI-01 - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1031AI - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1033AI - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ1034 - 4A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
Other Datasheets by Alpha and Omega Semiconductors
  • AOZ1017 - EZBuck 3A Simple Regulator
  • AOZ1018 - EZBuck 2A Simple Regulator
  • AOZ1019 - EZBuck 2A Simple Regulator
  • AOZ1020 - 2A Synchronous Buck Regulator
  • AOZ1021 - EZBuck 3A Synchronous Buck Regulator
  • AOZ1024D - EZBuck 4A Synchronous Buck Regulator

Full PDF Text Transcription

Click to expand full text
AOZ1015 EZBuck™ 1.5A Synchronous Buck Regulator www.DataSheet4U.com General Description The AOZ1015 is a high efficiency, simple to use, 1.5A buck regulator. The AOZ1015 works from a 4.5V to 16V input voltage range, and provides up to 1.5A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1015 comes in an SO-8 package and is rated over a -40°C to +85°C ambient temperature range. Features ● ● ● ● ● ● ● ● ● ● ● ● ● 4.5V to 16V operating input voltage range 130mΩ internal PFET switch for high efficiency: up to 95% Internal Schottky diode Internal soft start Output voltage adjustable to 0.8V 1.
