AOZ1010 - 2A Simple Buck Regulator

Datasheet Summary

Description

The AOZ1010 is a high efficiency, simple to use, 2A buck regulator.

The AOZ1010 works from a 4.5V to 16V input voltage range, and provides up to 2A of continuous output current with an output voltage adjustable down to 0.8V.

Features

  • 4.5V to 16V operating input voltage range.
  • 130 m Ω internal PFET switch for high efficiency: up to 95%.
  • Internal Schottky Diode.
  • Internal soft start.
  • Output voltage adjustable to 0.8V.
  • 2A continuous output current.
  • Fixed 500kHz PWM operation.
  • Cycle-by-cycle current limit.
  • Short-circuit protection.
  • Thermal shutdown.
  • Small size SO-8 package.

📥 Download Datasheet

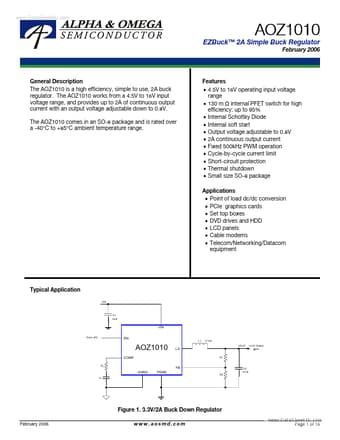

Datasheet preview – AOZ1010

Datasheet Details

Part number AOZ1010
Manufacturer Alpha & Omega Semiconductors
File Size 610.50 KB
Description 2A Simple Buck Regulator
Datasheet download datasheet AOZ1010 Datasheet
Additional preview pages of the AOZ1010 datasheet.
