AOZ1012D - 3A Simple Buck Regulator

Datasheet Summary

Description

The AOZ1012D is a high efficiency, simple to use, 3A buck regulator.

The AOZ1012D works from a 4.5V to 16V input voltage range, and provides up to 3A of continuous output current with an output voltage adjustable down to 0.8V.

Features

  • 4.5V to 16V operating input voltage range.
  • 50 m Ω internal PFET switch for high efficiency: up to 95%.
  • Internal Schottky Diode.
  • Internal soft start.
  • Output voltage adjustable to 0.8V.
  • 3A continuous output current.
  • Fixed 500kHz PWM operation.
  • Cycle-by-cycle current limit.
  • Short-circuit protection.
  • Thermal shutdown.
  • Small size DFN-8 packages.

📥 Download Datasheet

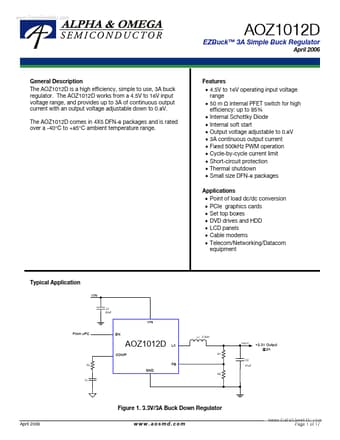

Datasheet preview – AOZ1012D

Datasheet Details

Part number AOZ1012D
Manufacturer Alpha & Omega Semiconductors
File Size 838.80 KB
Description 3A Simple Buck Regulator
Datasheet download datasheet AOZ1012D Datasheet
Additional preview pages of the AOZ1012D datasheet.

📁 Similar Datasheet

  • AOZ1015 - EZBuck 1.5A Synchronous Buck Regulator (Alpha and Omega Semiconductors)
  • AOZ1017 - EZBuck 3A Simple Regulator (Alpha and Omega Semiconductors)
  • AOZ1018 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)
  • AOZ1019 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)
  • AOZ1020 - 2A Synchronous Buck Regulator (Alpha and Omega Semiconductors)
  • AOZ1021 - EZBuck 3A Synchronous Buck Regulator (Alpha and Omega Semiconductors)
  • AOZ1024D - EZBuck 4A Synchronous Buck Regulator (Alpha and Omega Semiconductors)
  • AOZ3010PI - 2A Synchronous Buck Regulator (ALPHA & OMEGA)
  • AOZ3011PI - 3A Synchronous Buck Regulator (ALPHA & OMEGA)
  • AOZ3017 - 4A Synchronous Buck Regulator (ALPHA & OMEGA)
Other Datasheets by Alpha & Omega Semiconductors

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com ^lwNMNOa= EZBuck™ 3A Simple Buck Regulator April 2006 General Description The AOZ1012D is a high efficiency, simple to use, 3A buck regulator. The AOZ1012D works from a 4.5V to 16V input voltage range, and provides up to 3A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1012D comes in 4X5 DFN-8 packages and is rated over a -40°C to +85°C ambient temperature range. Features • 4.5V to 16V operating input voltage range • 50 m Ω internal PFET switch for high efficiency: up to 95% • Internal Schottky Diode • Internal soft start • Output voltage adjustable to 0.
