SRC1205UF - NPN Silicon Transistor

Name: SRC1205UF
SKU: SRC1205UF-462070

AUK

The SRC1205UF by AUK is a NPN Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SRC1205UF
Manufacturer	AUK
File Size	120.09 KB
Description	NPN Silicon Transistor
Datasheet	SRC1205UF_AUKcorp.pdf

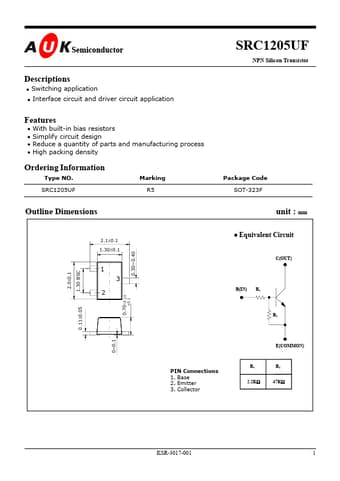

Additional preview pages of the SRC1205UF datasheet.

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRC1205UF Marking R5 Package Code SOT-323F Outline Dimensions unit : mm.
Equivalent Circuit 0.30~0.40 C(OUT) 2.1±0.1 1.30±0.1 1.30 BSC 2.0±0.1 1 3 0.70-0.15 2 B(IN) +0.1 R1 0.11±0.05 R2 0~0.1 E(COMMON) PIN Connections 1. Base 2. Emitter 3. Collector R1 2.2KΩ R2 47KΩ KSR-3017-.
